Automated NGS Library Preparation: How the Auto Library Prep 24 Boosts Throughput

Next-generation sequencing (NGS) has revolutionized genomics research, but library preparation remains one of the most time-consuming and error-prone steps in the workflow. Manual pipetting introduces variability, limits throughput, and ties up skilled researchers with repetitive tasks.

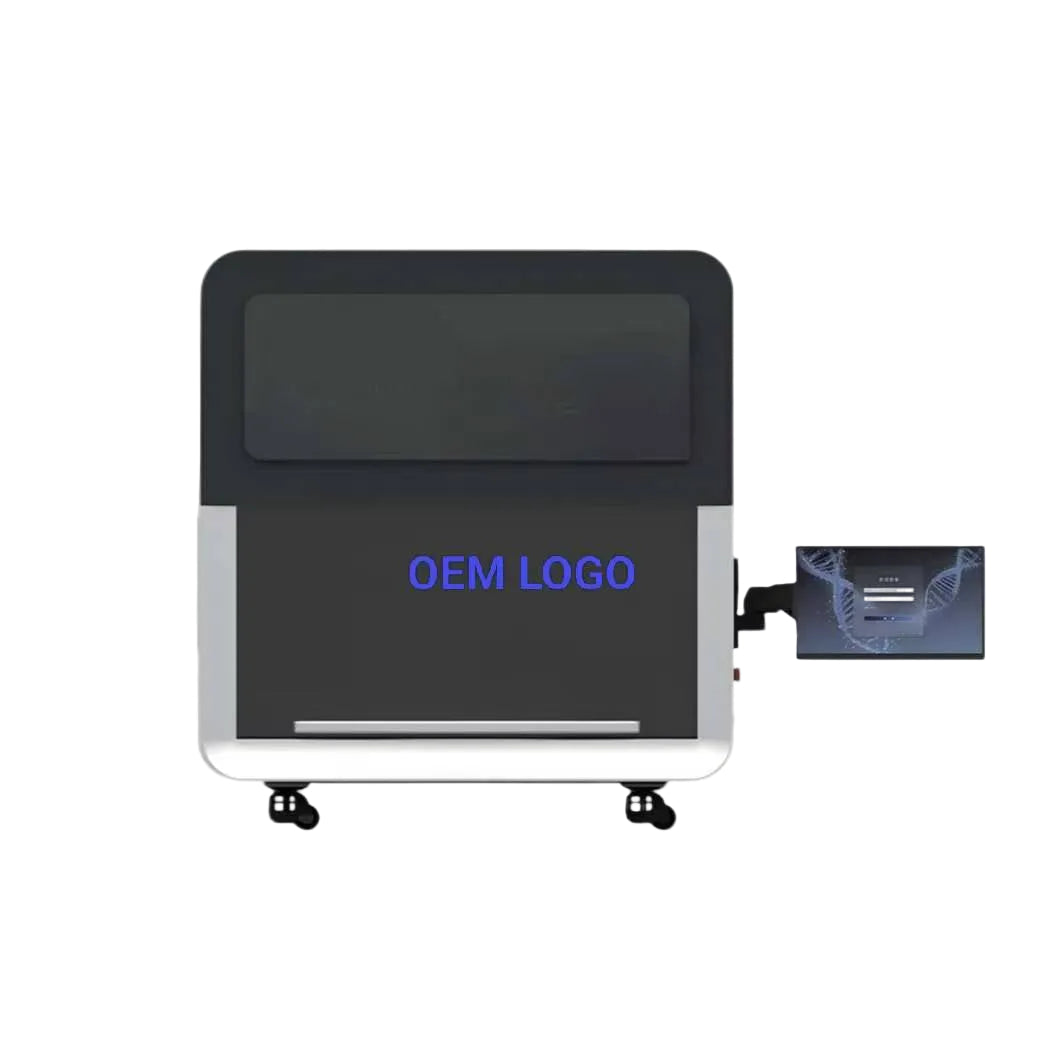

The Meticulab Auto Library Prep 24 is a fully automated benchtop system designed to address these challenges, integrating precision liquid handling, magnetic bead purification, PCR amplification, and concentration quantification into a single compact workstation.

This guide explores how automated NGS library preparation can transform your laboratory's productivity and why the Auto Library Prep 24 is the ideal solution for research labs, sequencing service providers, and diagnostic companies.

🔬 1. The Challenge of NGS Library Preparation

NGS library preparation involves multiple complex steps:

• DNA/RNA fragmentation – Enzymatic or mechanical shearing
• End repair and A-tailing – Preparing fragments for adapter ligation
• Adapter ligation – Adding sequencing adapters with barcodes
• Size selection – Removing unwanted fragments (often with magnetic beads)
• PCR amplification – Enriching the library
• Library quantification – Determining concentration for pooling

When performed manually, these steps present several challenges:

• Time-consuming – A single library can take 4-8 hours of hands-on time
• Variability – Pipetting differences between samples affect reproducibility
• Error-prone – Complex protocols increase risk of mistakes
• Scalability issues – Processing multiple samples becomes exponentially more difficult
• Operator fatigue – Repetitive tasks lead to decreased accuracy over time

⚙️ 2. The Auto Library Prep 24 Solution

The Meticulab Auto Library Prep 24 addresses these challenges through complete automation of the entire NGS library preparation workflow.

✅ 24-Sample Parallel Processing

The system processes 1 to 24 samples simultaneously in a single run, dramatically increasing throughput while maintaining individual sample integrity.

✅ Fully Integrated Workflow

Unlike modular systems that require manual transfer between instruments, the Auto Library Prep 24 combines all necessary functions in one compact workstation:

• Precision liquid handling – 2–200μL pipetting volume with high accuracy
• Magnetic bead purification – Integrated magnetic stand for size selection and cleanup
• Onboard PCR module – Temperature range 4°C–100°C with ±0.2°C accuracy
• Concentration quantification – Real-time fluorescence quantification with standard curve calculation

✅ Contamination Control

• HEPA filtration – Maintains clean environment
• UV sterilization – Between runs to prevent cross-contamination

✅ User-Friendly Software

Intuitive graphical interface with customizable protocols for various library preparation kits and applications.

📋 3. Technical Specifications

Specification	Details
Sample Throughput	1–24 samples per run
Pipetting Volume	2–200 μL
Positioning Accuracy (XYZ)	≤ ±0.1 mm
PCR Temperature Range	4°C to 100°C
Temperature Accuracy	±0.2°C
Quantification Range	2–200 ng
Dimensions (W×D×H)	995mm × 800mm × 1000mm
Weight	Approximately 247 kg
Power Requirements	AC 100–240V, 50/60Hz, 1200VA
Contamination Control	HEPA filtration, UV sterilization
Communication	TCP/IP socket communication, LIS connectivity

🧪 4. System Components

• 24-channel pipetting head (200μL)
• Onboard PCR amplification module
• Concentration quantification module
• Cooling module for reagent storage
• Magnetic bead separation module
• Plate gripper for automated transport
• Industrial PC with touchscreen interface
• Meticulab Library Prep Software V2.1

🔄 5. Compatible Consumables

• 96-well microplates and PCR plates
• 200μL, 50μL, and 20μL pipette tips
• Reagent reservoirs and tubes
• Standard laboratory consumables – no proprietary consumables required

📊 6. Manual vs. Automated Library Prep: A Comparison

Parameter	Manual	Auto Library Prep 24
Hands-on time (24 samples)	4–8 hours	15–30 minutes
Total run time	6–10 hours	3–5 hours
Pipetting variability	High (operator-dependent)	Low (instrument-controlled)
Error rate	Higher risk	Minimized
Scalability	Difficult	Easy (batch processing)
Reproducibility	Variable	Excellent
Operator skill required	High	Low

🔧 7. Applications

• DNA and RNA library preparation for NGS
• Targeted panel enrichment
• Methylation sequencing library construction
• FFPE sample processing
• cfDNA library preparation from liquid biopsies
• Automated magnetic bead purification for various applications

⚙️ 8. OEM/ODM Customization Options

The Auto Library Prep 24 is available for private labeling and white-label solutions, making it ideal for equipment brands, diagnostic companies, and research institutions developing their own product lines.

✅ Customization Options

• Branding & private labeling – Your logo, colors, and packaging
• White-label solutions – Ready for your brand identity
• Custom software – Tailored protocols and user interface
• Modified hardware – Adjust pipetting heads, plate positions, or modules
• Integration services – Connect with your existing LIMS or automation systems
• Custom packaging – Retail-ready or OEM bulk packaging
• Protocol development – Custom methods for specific library prep kits

📦 9. Ordering Information

• Standard models: Available for immediate delivery
• OEM/ODM orders: Minimum quantities vary by customization level
• Demo units: Available for qualified customers

⚠️ Important Notice

This instrument is designed for laboratory research use only (RUO). It is not a medical device and not intended for clinical diagnostic applications without appropriate validation. Compatible with major sequencing platforms including Illumina, MGI, and Thermo Fisher. To protect our OEM/ODM partners, manufacturer names and internal model numbers are not disclosed.

❌ Common Mistakes When Automating NGS Library Prep

• Underestimating throughput requirements – Choose a system that can handle your peak volumes, not just average.
• Ignoring integration needs – Ensure the system can interface with your existing LIMS and downstream processes.
• Not validating protocols – Always validate automated protocols against manual methods before full implementation.
• Overlooking training requirements – Staff need proper training to operate and troubleshoot automated systems.
• Choosing proprietary consumables – Systems that require proprietary consumables increase long-term costs.

✅ Why Choose Meticulab for Automated NGS Library Prep?

At Meticulab, we supply high-quality automated NGS library preparation systems for research and diagnostic applications (RUO):

• Fully integrated workflow – One system does it all
• 24-sample throughput – Ideal for low-to-medium throughput labs
• No proprietary consumables – Use standard lab supplies
• Compact benchtop design – Fits in any lab
• OEM/ODM customization – Build your own brand
• Fast dispatch from Asia – In-stock items ship within 1-3 days
• Low MOQ – 1 unit available for testing

Explore our product page:

• Meticulab Auto Library Prep 24 – Automated NGS Library Preparation System

❓ Frequently Asked Questions

Q: Which sequencing platforms is this system compatible with?
A: The Auto Library Prep 24 is compatible with major sequencing platforms including Illumina, MGI, Thermo Fisher, and others. Custom protocols can be developed for specific kits and platforms.

Q: Can I use my own library preparation kits?
A: Yes, the system supports open protocols. We can help develop custom methods for your preferred kits. Contact us with your requirements.

Q: What is the typical throughput per day?
A: With 24-sample batch processing and automated workflows, the system can process multiple batches per day depending on protocol length. Contact us for specific throughput calculations based on your application.

Q: Do you provide installation and training?
A: Yes, we provide remote or on-site installation support and training for all our systems. OEM/ODM partners receive comprehensive technical transfer packages.

Q: Can this system be integrated with automated liquid handlers?
A: Yes, the system can be integrated into larger automated workstations. Contact our integration specialists for details.

Q: What is the minimum order quantity?
A: 1 unit is available for testing. Volume discounts available for multiple units. OEM/ODM orders have varying MOQs based on customization level.

Q: What is the typical delivery time?
A: In-stock instruments ship within 1-3 days. Custom OEM configurations may take 4-8 weeks depending on specifications.
