Flame Photometer Buyer's Guide: FP640 vs. FP6450 – Which One Is Right for Your Lab?

Flame photometry is a well-established technique for determining alkali and alkaline earth metals such as potassium (K), sodium (Na), calcium (Ca), barium (Ba), and lithium (Li). From clinical diagnostics and agricultural analysis to environmental monitoring and industrial quality control, flame photometers are essential tools in laboratories worldwide.

With multiple models available in the FP series—from the entry-level FP640 to the flagship 6-element FP6450—how do you choose the right instrument for your specific needs and budget?

This guide will help you understand the differences and make an informed decision.

🔬 1. Understanding Flame Photometry

Flame photometry (also called flame emission spectroscopy) measures the intensity of light emitted by atoms excited in a flame. Each element emits light at characteristic wavelengths:

• Potassium (K) – 766 nm
• Sodium (Na) – 589 nm
• Calcium (Ca) – 622 nm
• Barium (Ba) – 554 nm
• Lithium (Li) – 671 nm

The intensity of emitted light is proportional to the concentration of the element in the sample, allowing quantitative analysis.

✅ Key Applications

• Clinical diagnostics – Serum electrolytes (K, Na), urine analysis
• Agricultural analysis – Soil, plant tissue, fertilizers
• Environmental monitoring – Water quality, wastewater
• Food and beverage – Nutritional labeling, quality control
• Pharmaceutical – Raw material testing, formulation
• Industrial – Cement, glass, ceramics, petroleum products

📊 2. FP Series Model Comparison

✅ FP640 – Entry-Level Model

The FP640 is an economical, single-channel flame photometer designed for routine K and Na analysis. It offers basic concentration reading without automatic correlation coefficient calculation.

Key features:

• Basic concentration reading
• Simple operation, ideal for routine work
• Economical price point
• Perfect for teaching labs and basic quality control

Best for:

• Teaching laboratories
• Basic K/Na analysis
• Budget-conscious labs
• Routine quality control

✅ FP6410 – Professional Single-Channel

The FP6410 upgrades to a 7-inch color touch screen and offers more advanced features while maintaining single-channel simplicity.

Key features:

• 7" color capacitive touch screen
• Direct concentration reading with automatic correlation coefficient calculation
• Large memory capacity (20 standard curves, 20 test data sets)
• USB communication port for PC connection

Best for:

• Labs needing single-channel analysis with modern interface
• Applications requiring data storage and PC connectivity
• Upgrading from basic FP640

✅ FP6430 – Economical 3-Element Analyzer

The FP6430 expands analysis capabilities to three elements (typically K, Na, and a third element such as Ca or Li).

Key features:

• 3-element simultaneous analysis
• Economical multi-element solution
• Same advanced features as FP6410

Best for:

• Labs needing multi-element analysis on a budget
• Agricultural and environmental labs analyzing multiple elements

✅ FP6431 – Upgraded 3-Element with Range Switching

The FP6431 adds range switching capability, allowing measurement of both low and high concentrations without manual dilution.

Key features:

• 3-element analysis with range switching
• Extended dynamic range
• Reduces manual dilution steps

Best for:

• Labs analyzing samples with wide concentration ranges
• High-throughput environments where dilution is impractical

✅ FP6440 – 4-Element Stable Analyzer

The FP6440 offers 4-element analysis with enhanced stability for demanding applications.

Key features:

• 4-element simultaneous analysis
• Enhanced stability for long-term measurements
• Same advanced features as other models

Best for:

• Labs needing four-element analysis
• Applications requiring high stability

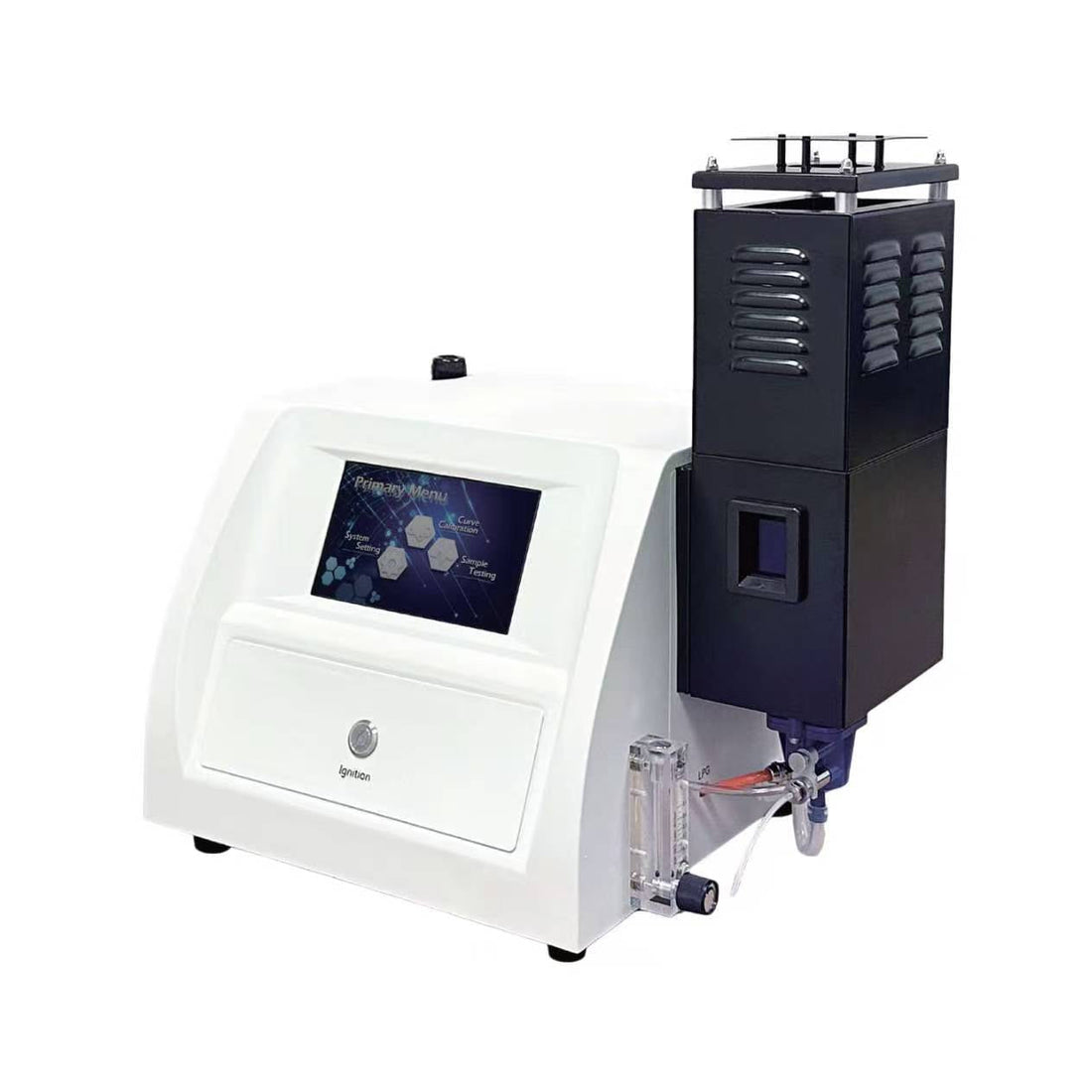

✅ FP6450 – Flagship 6-Element High Precision Analyzer

The FP6450 is the flagship model, offering 6-element simultaneous analysis with the highest precision and most advanced features.

Key features:

• 6-element simultaneous analysis (K, Na, Ba, Ca, Li)
• Highest precision and accuracy
• Advanced safety features (gas leakage alarm, flameout protection)
• Adjustable gas flow with direct reading
• All FP series features included

Best for:

• Research laboratories
• Clinical labs requiring highest accuracy
• Multi-element analysis applications
• Labs needing maximum flexibility

📋 3. Technical Specifications Comparison

Feature	FP640	FP6410	FP6430	FP6431	FP6440	FP6450
Elements Analyzed	2 (K, Na)	2 (K, Na)	3	3	4	6
Touch Screen	No	7"	7"	7"	7"	7"
Direct Concentration Reading	Basic	Auto correlation	Auto correlation	Auto correlation	Auto correlation	Auto correlation
Memory Capacity	Limited	20 curves, 20 data sets	20 curves, 20 data sets	20 curves, 20 data sets	20 curves, 20 data sets	20 curves, 20 data sets
Gas Flow Control	Manual	Adjustable	Adjustable	Adjustable	Adjustable	Adjustable with direct reading
Gas Leakage Alarm	No	No	No	No	No	Yes
Flameout Protection	No	No	No	No	No	Yes
USB Port	No	Yes	Yes	Yes	Yes	Yes
Range Switching	No	No	No	Yes	No	No

🔧 4. Key Features Across All Models

• 7-inch color capacitive touch screen (except FP640) – Clear display, intuitive operation, multi-language support
• Push-button ignition – Easy and safe start-up
• Direct concentration reading – Automatic correlation coefficient calculation (except FP640)
• Large memory capacity – Stores up to 20 sets of standard curves and 20 sets of test data
• Adjustable gas flow – Direct reading with safety features
• USB communication port – Direct connection to PC for data analysis
• Optional built-in printer – Convenient on-site printing
• Detection range screen switching – Available according to specific model

📦 5. Standard Accessories (All Models)

• LPG reducing valve (1 pc)
• Stainless steel bellows for LPG (1 pc)
• Silica gel tubing for waste liquid (1 pc)
• PU tubing for air (1 pc)
• Air compressor (1 pc)

🔧 6. Optional Accessories

• Built-in thermal printer
• Professional data processing software

📊 7. Quick Selection Guide

Your Needs	Recommended Model	Why
Basic K/Na analysis, tight budget	FP640	Most economical, does the job
Single-channel analysis with modern features	FP6410	Touch screen, USB, data storage
3-element analysis on a budget	FP6430	Cost-effective multi-element solution
3-element analysis with wide concentration ranges	FP6431	Range switching reduces dilution steps
4-element analysis, high stability	FP6440	Enhanced stability for demanding applications
Maximum flexibility, highest precision	FP6450	6-element analysis, advanced safety features

⚠️ Important Notice

These instruments are designed for laboratory research use only (RUO). They are not medical devices and not intended for clinical diagnostic applications without appropriate validation. Users are responsible for ensuring compliance with all applicable regulations.

❌ Common Mistakes When Choosing a Flame Photometer

• Buying too basic for future needs – Consider whether you might need more elements later.
• Overlooking safety features – Gas leakage alarms and flameout protection are critical for safety.
• Ignoring data management needs – If you need to store and analyze data, invest in models with USB and software.
• Not considering sample throughput – Multi-element analysis can significantly speed up workflow.
• Forgetting about range switching – If you analyze both high and low concentrations, range switching saves time.

✅ Why Choose Meticulab for Flame Photometers?

At Meticulab, we supply high-quality flame photometers for research and industrial applications (RUO):

• Complete FP series – From basic FP640 to flagship FP6450
• Advanced safety features – Gas alarms, flameout protection on flagship models
• Modern touch screen interface – Intuitive operation on all models except FP640
• Data management – USB connectivity, optional software
• Custom configurations available – OEM/ODM to your specifications
• Fast dispatch from Asia – In-stock items ship within 1-3 days
• Low MOQ – 1 unit available for testing

Explore our product pages:

• FP6450 6-Element High Precision Flame Photometer
• FP Series Multi-Element Flame Photometers

❓ Frequently Asked Questions

Q: What elements can flame photometers measure?
A: Flame photometers are primarily used for alkali and alkaline earth metals including potassium (K), sodium (Na), calcium (Ca), barium (Ba), and lithium (Li). Some models can also measure other elements with appropriate filters.

Q: What is the difference between FP640 and FP6450?
A: FP640 is an entry-level model for basic K/Na analysis. FP6450 is the flagship 6-element analyzer with touch screen, advanced safety features, and higher precision.

Q: Do I need range switching?
A: If you analyze samples with widely varying concentrations (e.g., both trace levels and high concentrations), range switching (available on FP6431) saves time by eliminating manual dilution steps.

Q: What gas does the flame photometer use?
A: The FP series uses LPG (liquefied petroleum gas) as the fuel source. An air compressor is included for the oxidant.

Q: What is the minimum order quantity?
A: 1 unit is available for testing. Volume discounts available for multiple units.

Q: What is the typical delivery time?
A: In-stock instruments ship within 1-3 days. Custom orders may take 4-8 weeks depending on specifications.
