UV-VIS Spectrophotometer: Single Beam vs. Double Beam – What's the Difference and Which One Do You Need?

UV-VIS spectrophotometry is one of the most widely used analytical techniques in laboratories worldwide—from pharmaceutical quality control and clinical diagnostics to environmental monitoring and academic research. At the heart of this technique lies a fundamental decision: should you choose a single beam or a double beam instrument?

With options including the L7 series double beam spectrophotometer and the N4/N2 series single beam instruments, how do you know which one is right for your specific applications and budget?

This guide will help you understand the differences and make an informed decision.

🔬 1. Understanding the Basic Principles

✅ Single Beam Spectrophotometers

In a single beam spectrophotometer, a single beam of light passes through the monochromator, then through the sample, and finally to the detector [citation:1]. The measurement process requires two steps:

1. Blank measurement – First, you measure a reference blank solution to establish a baseline
2. Sample measurement – Then, you measure your sample and compare it to the stored blank value

This design is simple, robust, and cost-effective. However, it assumes that the light source and detector remain stable between the blank and sample measurements. Any drift in lamp intensity or detector response can affect accuracy [citation:7].

Examples from Meticulab: N4/N2 series single beam spectrophotometers, including N4 (190-1100nm), N4S (scanning), N2 (325-1100nm), and N2S (scanning) models [citation:3][citation:9].

✅ Double Beam Spectrophotometers

In a double beam spectrophotometer, the light beam is split into two paths: one passes through the sample, the other through a reference [citation:1]. Both beams are measured simultaneously, and the instrument continuously compares the two signals [citation:7].

This design offers several key advantages:

• Real-time compensation – Automatically corrects for fluctuations in light source intensity and detector response
• Improved stability – Especially important for long-term measurements and kinetics studies [citation:1]
• No need for separate blank scans – The reference channel continuously monitors the baseline
• Superior for scanning applications – Produces smooth, accurate spectra without manual baseline correction [citation:1]

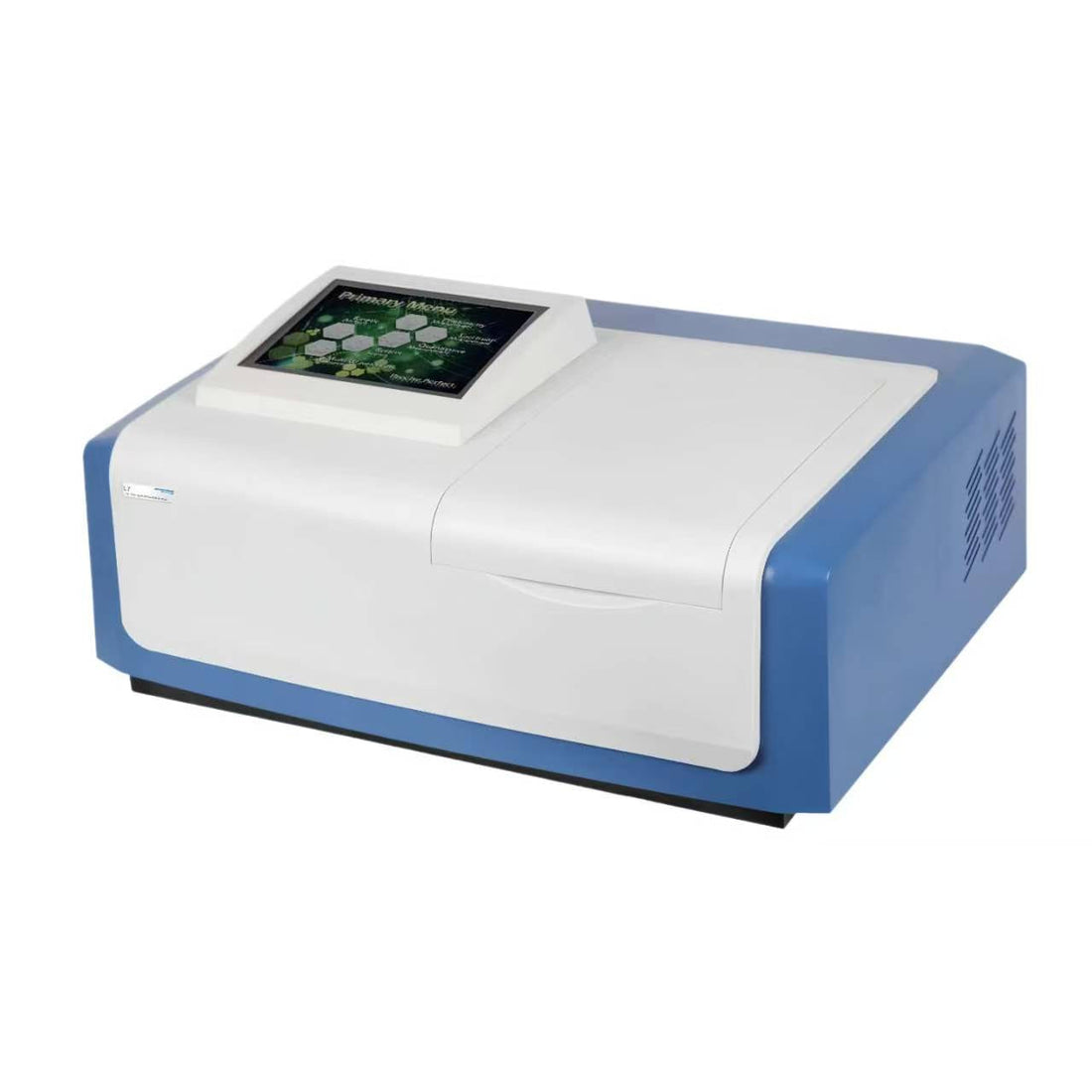

Examples from Meticulab: L7 series double beam spectrophotometer with 8-inch touch screen, 190-1100nm range, and advanced scanning functions [citation:2][citation:5][citation:8].

📊 2. Detailed Comparison: Single Beam vs. Double Beam

Parameter	Single Beam	Double Beam	Winner
Optical Design	Single light path	Split into sample + reference paths	Double beam
Measurement Process	Sequential (blank then sample)	Simultaneous (sample + reference)	Double beam
Stability / Drift	Moderate (affected by lamp fluctuations)	Excellent (continuous compensation)	Double beam [citation:1]
Wavelength Accuracy	±1nm (N4/N2 series) [citation:3][citation:9]	±0.3-0.5nm (L7 series) [citation:2][citation:5]	Double beam
Stray Light	≤0.1%T [citation:9]	≤0.03%T [citation:2][citation:5]	Double beam
Baseline Stability	≤±0.003A [citation:9]	≤±0.002A [citation:2][citation:5]	Double beam
Scanning Capability	Available on S models (N4S, N2S)	Standard on all models	Double beam
Kinetics Studies	Limited (requires stable conditions)	Excellent (real-time compensation)	Double beam [citation:1]
Price Range	$1,000–5,000 [citation:6]	$5,000–20,000+ [citation:2]	Single beam
Maintenance	Simpler, fewer components	More complex optics	Single beam [citation:1]

📋 3. Technical Specifications: Meticulab Models

✅ N4/N2 Series (Single Beam)

Model	Wavelength Range	Bandwidth	Scanning	Best For
N4	190-1100nm	2nm	No	UV-VIS quantitative analysis
N4S	190-1100nm	2nm	Yes	UV-VIS scanning + quantitative
N2	325-1100nm	4nm	No	Visible quantitative analysis
N2S	325-1100nm	4nm	Yes	Visible scanning + quantitative

Key specifications [citation:3][citation:9]:

• Display: 7-inch color touch screen
• Photometric range: 0.0–200.0%T, -0.301–4.000A, 0–9999C
• Photometric accuracy: ±0.3%T (N4/N4S)
• USB port: For PC connection
• Optional accessories: Thermal printer, UVWIN8 software, 50/100mm cuvette holders

✅ L7 Series (Double Beam)

Key specifications [citation:2][citation:5][citation:8]:

• Optical system: Double beam, Czerny-Turner monochromator
• Wavelength range: 190-1100nm (full spectrum coverage)
• Bandwidth: 1.8nm
• Wavelength accuracy: ±0.3-0.5nm
• Wavelength repeatability: ≤0.2nm
• Stray light: ≤0.03%T (at 220nm NaI, 360nm NaNO₂)
• Baseline stability: ≤±0.002A (200-1090nm)
• Drift: ≤0.0009 Abs/30min (after warm-up)
• Display: 8-inch color touch screen
• Functions: Full-spectrum scanning, kinetics, multi-wavelength, peak detection [citation:2]
• Connectivity: USB COM port for PC connection
• Optional software: UV WIN8 spectrum data processing software
• Optional printer: Thermal plotter for printing results and curves

🔧 4. Key Features Comparison

✅ Single Beam (N4/N2 Series) Advantages

• Lower initial cost – More affordable for budget-conscious labs [citation:1]
• Simpler operation – Straightforward for routine measurements
• Higher energy throughput – Since light isn't split, more energy reaches the sample [citation:1]
• Multiple models – Choose UV or visible range, with or without scanning [citation:9]
• Economical for teaching labs – Perfect for demonstrating Beer's Law and basic quantitative analysis [citation:1]

✅ Double Beam (L7 Series) Advantages

• Superior stability – Real-time compensation for lamp fluctuations [citation:1][citation:7]
• Higher precision – Better wavelength accuracy and repeatability [citation:2]
• Lower stray light – ≤0.03%T vs. 0.1%T, important for high-absorbance samples [citation:2][citation:9]
• Full-spectrum scanning – Smooth, accurate spectra without manual baseline correction [citation:1]
• Kinetics capability – Ideal for time-based studies like enzyme reactions [citation:1]
• Multi-wavelength analysis – Measure at multiple wavelengths simultaneously
• Research-grade performance – Suitable for demanding applications [citation:4]

📊 5. Quick Selection Guide

Your Application	Recommended System	Meticulab Model
Routine quantitative analysis at fixed wavelengths	Single Beam	N4 or N2
Teaching laboratories / Student experiments	Single Beam	N2 (visible) or N4 (UV-VIS)
UV measurements (below 325nm)	Single or Double Beam	N4/N4S or L7
Visible-only measurements (economical)	Single Beam	N2/N2S
Occasional spectral scanning	Single Beam (S models)	N4S or N2S
Full-spectrum scanning (routine)	Double Beam	L7
Kinetics studies / Time-based measurements	Double Beam	L7 [citation:1]
High-precision research	Double Beam	L7 [citation:4]
Pharmaceutical purity testing	Double Beam	L7 [citation:1]
Environmental monitoring (routine)	Single or Double Beam	Depends on precision needs
Budget under $5,000	Single Beam	N4/N2 Series
Budget $5,000–$20,000	Double Beam	L7 Series [citation:2]

⚠️ Important Notice

These instruments are designed for laboratory research use only (RUO). They are not medical devices and not intended for clinical diagnostic applications without appropriate validation. Users are responsible for ensuring compliance with all applicable regulations.

❌ Common Mistakes When Choosing a UV-VIS Spectrophotometer

• Buying a single beam for full-spectrum scanning – While S models can scan, double beam offers superior stability and convenience [citation:1].
• Overlooking stray light specifications – High stray light limits measurement range, especially for high-absorbance samples.
• Ignoring baseline stability – For long-term measurements or kinetics, drift can significantly affect results [citation:1].
• Not considering future needs – If you might need scanning or kinetics later, invest in a double beam now.
• Choosing by price alone – Consider total cost of ownership, including software, accessories, and support.
• Forgetting about cuvette compatibility – Ensure the instrument accepts the cuvette sizes you need (5-100mm).

✅ Why Choose Meticulab for UV-VIS Spectrophotometers?

At Meticulab, we supply high-quality UV-VIS spectrophotometers for research and industrial applications (RUO):

• Complete range of options – From economical single beam N4/N2 series to research-grade double beam L7 series
• Modern touch screen interfaces – 7-inch on N4/N2, 8-inch on L7 for intuitive operation
• Comprehensive functionality – Scanning, kinetics, multi-wavelength, and more
• Data management – USB connectivity, optional software and printers
• Custom configurations available – OEM/ODM to your specifications
• Fast dispatch from Asia – In-stock items ship within 1-3 days
• Low MOQ – 1 unit available for testing

Explore our product pages:

• L7 Series Double Beam UV-VIS Spectrophotometer
• N4/N2 Series UV-VIS Spectrophotometers

❓ Frequently Asked Questions

Q: What is the main difference between single beam and double beam spectrophotometers?
A: A single beam spectrophotometer uses one light path and requires sequential blank and sample measurements. A double beam splits light into sample and reference paths for simultaneous measurement, providing real-time compensation for fluctuations and superior stability [citation:1][citation:7].

Q: Which is better for routine quantitative analysis?
A: Both can perform quantitative analysis effectively. Single beam instruments like our N4/N2 series are more economical and perfectly adequate for routine work at fixed wavelengths [citation:1].

Q: Which is better for full-spectrum scanning?
A: Double beam instruments like our L7 series are superior for scanning applications, producing smoother, more accurate spectra without manual baseline correction [citation:1][citation:4].

Q: Can I do kinetics studies with a single beam spectrophotometer?
A: It's possible but challenging due to drift over time. Double beam instruments are specifically designed for kinetics, with real-time compensation ensuring data integrity [citation:1].

Q: What is the price difference between single and double beam?
A: Single beam instruments typically range from $1,000–5,000, while double beam instruments range from $5,000–20,000+ depending on features and performance [citation:2][citation:4][citation:6].

Q: What is the minimum order quantity?
A: 1 unit is available for testing. Volume discounts available for multiple units.

Q: What is the typical delivery time?
A: In-stock instruments ship within 1-3 days. Custom orders may take 4-8 weeks depending on specifications.
