PCR Plates: Skirted vs. Semi-Skirted vs. Non-Skirted – Which One Fits Your Thermal Cycler?

PCR plates are essential consumables for molecular biology laboratories. Choosing the right plate not only ensures compatibility with your thermal cycler but also affects reaction efficiency, evaporation rates, and automation compatibility.

With so many options available—skirted, semi-skirted, non-skirted, low-profile, standard-profile—how do you know which one is right for your application?

This guide will help you understand the differences and make an informed decision.

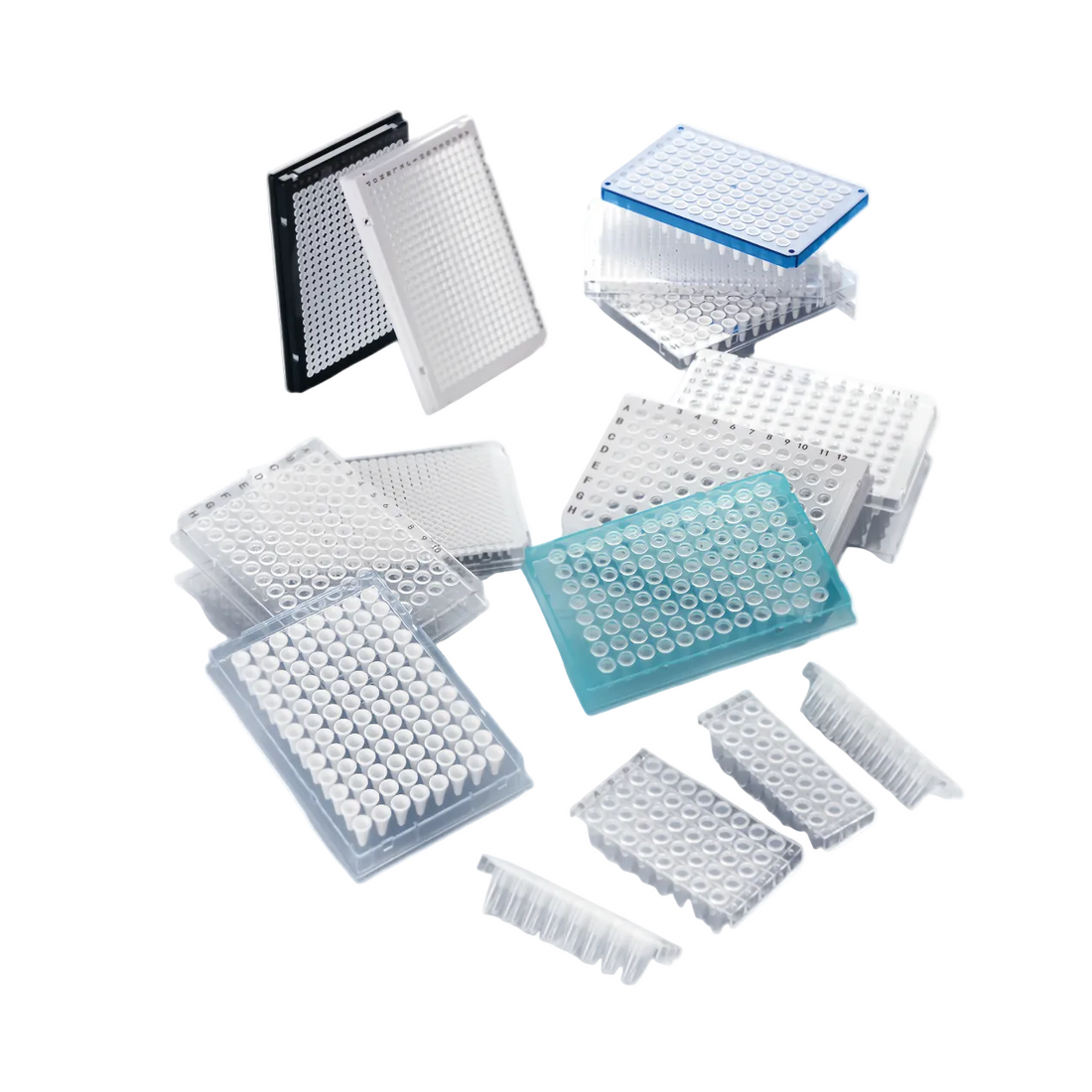

🔬 1. Understanding PCR Plate Skirt Types

The "skirt" of a PCR plate refers to the plastic rim that extends below the wells. It provides structural support and affects how the plate interfaces with thermal cyclers and automated systems.

✅ Non-Skirted PCR Plates

Non-skirted plates have no rigid skirt below the wells. They are the most flexible and economical option, but they offer the least structural support.

When to use non-skirted plates:

• Standard thermal cyclers – Compatible with most conventional PCR machines
• Manual handling – Ideal for labs where plates are handled by hand
• Budget-conscious applications – Most economical option

Advantages:

• Lowest cost
• Flexible, can be cut into strips if needed
• Suitable for most standard thermal cyclers

Disadvantages:

• Less rigid, may warp under thermal stress
• Not suitable for automated systems

✅ Semi-Skirted PCR Plates

Semi-skirted plates have a partial skirt that provides moderate stability while maintaining some flexibility.

When to use semi-skirted plates:

• Most thermal cyclers – Compatible with a wide range of instruments
• Applications requiring moderate stability – Good balance between cost and performance
• qPCR applications – Often preferred for real-time PCR

Advantages:

• Better rigidity than non-skirted plates
• Compatible with most thermal cyclers
• Good for both manual and semi-automated workflows

Disadvantages:

• Not as rigid as fully skirted plates
• May not be suitable for high-throughput automation

✅ Fully Skirted PCR Plates

Fully skirted plates have a rigid skirt that extends the full height of the plate, providing maximum structural support.

When to use fully skirted plates:

• Automated systems – Essential for robotic liquid handlers and automated workstations
• High-throughput screening – Provides stability for large-scale runs
• qPCR and real-time PCR – Minimizes well-to-well variation
• Cold storage – Rigid design prevents warping during freezing

Advantages:

• Maximum rigidity and stability
• Ideal for automation and robotic systems
• Minimizes evaporation and well-to-well variation

Disadvantages:

• Higher cost than other options
• May not fit all thermal cyclers (check compatibility)

📏 2. Low-Profile vs. Standard-Profile Plates

In addition to skirt type, PCR plates also come in different heights:

• Standard-profile plates – Traditional height, compatible with most thermal cyclers, suitable for larger reaction volumes (up to 200μL).
• Low-profile plates – Shorter height, reduces dead space in the thermal cycler, faster thermal transfer, ideal for qPCR and smaller reaction volumes (10–100μL).

Quick guide:

• Use standard-profile plates for routine PCR with larger volumes.
• Use low-profile plates for qPCR, fast cycling, and reduced evaporation.

🧪 3. Well Formats: 96-Well vs. 384-Well

• 96-well plates – Most common format, suitable for routine PCR and qPCR, compatible with most instruments.
• 384-well plates – Higher throughput, smaller reaction volumes, ideal for screening and automation.

When to use 384-well plates:

• High-throughput screening
• Large-scale genotyping
• Applications with limited sample volumes
• Automated liquid handling systems

🔧 4. Sealing Options: Films and Mats

Choosing the right seal is just as important as choosing the right plate:

• Optical sealing films – Clear, low-autofluorescence films for qPCR and real-time PCR.
• Aluminum foil seals – Light protection, ideal for long-term storage of light-sensitive samples.
• Pierceable films – Allow needle access for automated sampling.
• Breathable films – Gas-permeable, ideal for cell culture and microbial applications.
• Silicone sealing mats – Reusable, autoclavable, for short-term storage and incubation.

📊 Quick Selection Guide

Application	Plate Type	Sealing Recommendation
Routine PCR	Non-skirted or semi-skirted, standard-profile	PCR sealing film or silicone mat
qPCR / Real-Time PCR	Semi-skirted or fully skirted, low-profile	Optical sealing film
Automated workflows	Fully skirted	Heat-seal or pierceable film
Long-term storage	Any rigid plate	Aluminum foil seal
Cell culture	Non-skirted	Breathable film or silicone mat
High-throughput screening	384-well, fully skirted	Heat-seal film

📋 Compatibility Summary

Plate Type	Compatible With	Notes
Non-skirted	Most standard thermal cyclers	Not suitable for automation
Semi-skirted	Most thermal cyclers and qPCR instruments	Good all-purpose choice
Fully skirted	Automated systems, qPCR instruments	Check compatibility with your thermal cycler
Low-profile	qPCR instruments, fast thermal cyclers	Requires compatible heated lid

❌ Common Mistakes When Choosing PCR Plates

• Using non-skirted plates in automated systems – Can cause misalignment and crashes.
• Mixing plate types in the same run – Inconsistent thermal contact affects results.
• Using standard-profile plates in low-profile thermal cyclers – Lid may not close properly.
• Using non-optical films for qPCR – Blocks fluorescence detection.
• Reusing sealing films – Increases risk of evaporation and contamination.

✅ Why Choose Meticulab for PCR Consumables?

At Meticulab, we supply high-quality PCR consumables for research and diagnostic applications (RUO):

• 96-well and 384-well PCR plates – Non-skirted, semi-skirted, and fully skirted options
• 8-tube strips and individual tubes – Ultra-thin walls for fast thermal transfer
• Sealing films and mats – Optical, aluminum, pierceable, breathable, and reusable silicone
• Dual-material plates (PP+PC) – Minimized thermal expansion, ideal for automation
• Certified clean – DNase/RNase free, non-pyrogenic, DNA free
• Fast dispatch from Asia – In-stock items ship within 1-3 days

Explore our product pages:

• PCR Plates, Tubes & Sealing Films
• 0.2ml 8-Strip PCR Tubes
• Sealing Films & Mats

❓ Frequently Asked Questions

Q: How do I know if my thermal cycler accepts fully skirted plates?
A: Most modern thermal cyclers and qPCR instruments accept fully skirted plates, but it's always best to check your instrument manual. For specific compatibility, contact us with your instrument model.

Q: What is the advantage of dual-material PCR plates?
A: Dual-material plates combine ultra-thin PP wells for optimal heat transfer with a PC frame for dimensional stability. This minimizes thermal expansion during cycling, ensuring consistent well-to-well performance and compatibility with automated systems.

Q: Can I use optical films with non-qPCR applications?
A: Yes, optical films can be used for standard PCR as well, but they are more expensive than standard films. For routine PCR, standard sealing films are more economical.

Q: What is the minimum order quantity?
A: 1 box (10 plates or 100 tubes) is available for testing. Volume discounts available for bulk orders.

Q: Do you offer sterile PCR plates?
A: Yes, sterile options (gamma irradiated) are available upon request.
