Atomic Absorption Spectrophotometer: Flame vs. Graphite Furnace – Which Mode Do You Need?

Atomic absorption spectrophotometry (AAS) is a powerful technique for trace element analysis, widely used in environmental monitoring, pharmaceutical quality control, food safety testing, and metallurgy. The AA320N series offers both flame and graphite furnace options, but how do you know which mode is right for your applications?

This guide will help you understand the differences between flame and graphite furnace AAS, and guide you in choosing the right configuration for your laboratory's needs.

🔬 1. Understanding Atomic Absorption Spectrophotometry

Atomic absorption spectrophotometry measures the concentration of elements by detecting how much light of a specific wavelength is absorbed by atoms in the ground state. The sample is atomized – converted into free atoms – and a light beam from a hollow cathode lamp of the element of interest passes through the atom cloud. The amount of light absorbed is proportional to the concentration of the element.

The key difference between flame and graphite furnace AAS lies in how the sample is atomized.

✅ Flame AAS

In flame AAS, the sample solution is aspirated into a nebulizer, converted into a fine aerosol, and introduced into a flame (typically air-acetylene or nitrous oxide-acetylene). The flame provides the thermal energy to atomize the sample.

Advantages:

• Fast analysis – Typically 3-5 seconds per element
• Good precision – Relative standard deviation (RSD) typically 0.5-1%
• Easy to use – Simple, robust technique
• Low operating cost – Only fuel and oxidant gases required
• High sample throughput – Ideal for routine analysis of many samples

Limitations:

• Lower sensitivity – Detection limits typically in the ppm (μg/mL) range
• Larger sample volume required – Typically 1-5 mL per element
• Less suitable for complex matrices – May require extensive sample preparation

Typical applications:

• Wastewater monitoring (metals at ppm levels)
• Soil extracts after digestion
• Quality control of raw materials
• Geological samples (major and minor elements)

✅ Graphite Furnace AAS

In graphite furnace AAS (also called electrothermal AAS), a small volume of sample (typically 5-50 μL) is placed into a graphite tube, which is then resistively heated through a programmed temperature cycle: drying, ashing, and finally atomization at high temperature (up to 3000°C).

Advantages:

• Exceptional sensitivity – Detection limits in the ppb (ng/mL) range, 100-1000x better than flame
• Very small sample volume – Ideal for precious or limited samples
• Can analyze solids and slurries – With appropriate accessories
• Better for complex matrices – Temperature programming can separate analyte from matrix interferences

Limitations:

• Slower analysis – Each element takes 2-4 minutes
• Higher operating cost – Graphite tubes are consumables
• More complex method development – Requires optimization of temperature program
• Lower precision – RSD typically 2-5%
• More operator skill required

Typical applications:

• Drinking water analysis (trace metals at ppb levels)
• Clinical samples (blood, urine, tissues)
• Food safety (toxic elements like Pb, Cd, As)
• Pharmaceutical raw materials and finished products
• Environmental monitoring (ultra-trace levels)

📊 2. Detailed Comparison: Flame vs. Graphite Furnace AAS

Parameter	Flame AAS	Graphite Furnace AAS
Detection Limits	ppm (μg/mL) range	ppb (ng/mL) range
Sensitivity (Characteristic Concentration)	0.02-0.1 μg/mL for most elements	0.2-5 pg (absolute)
Sample Volume Required	1-5 mL	5-50 μL
Analysis Time per Element	3-5 seconds	2-4 minutes
Precision (RSD)	0.5-1%	2-5%
Sample Throughput	High (200-300 samples/day)	Low (50-100 samples/day)
Operating Cost	Low (only gases)	Higher (graphite tubes, gases)
Ease of Use	Simple, robust	More complex, requires optimization
Interferences	Spectral and chemical	Can be minimized by temperature programming

📋 3. AA320N Series Technical Specifications

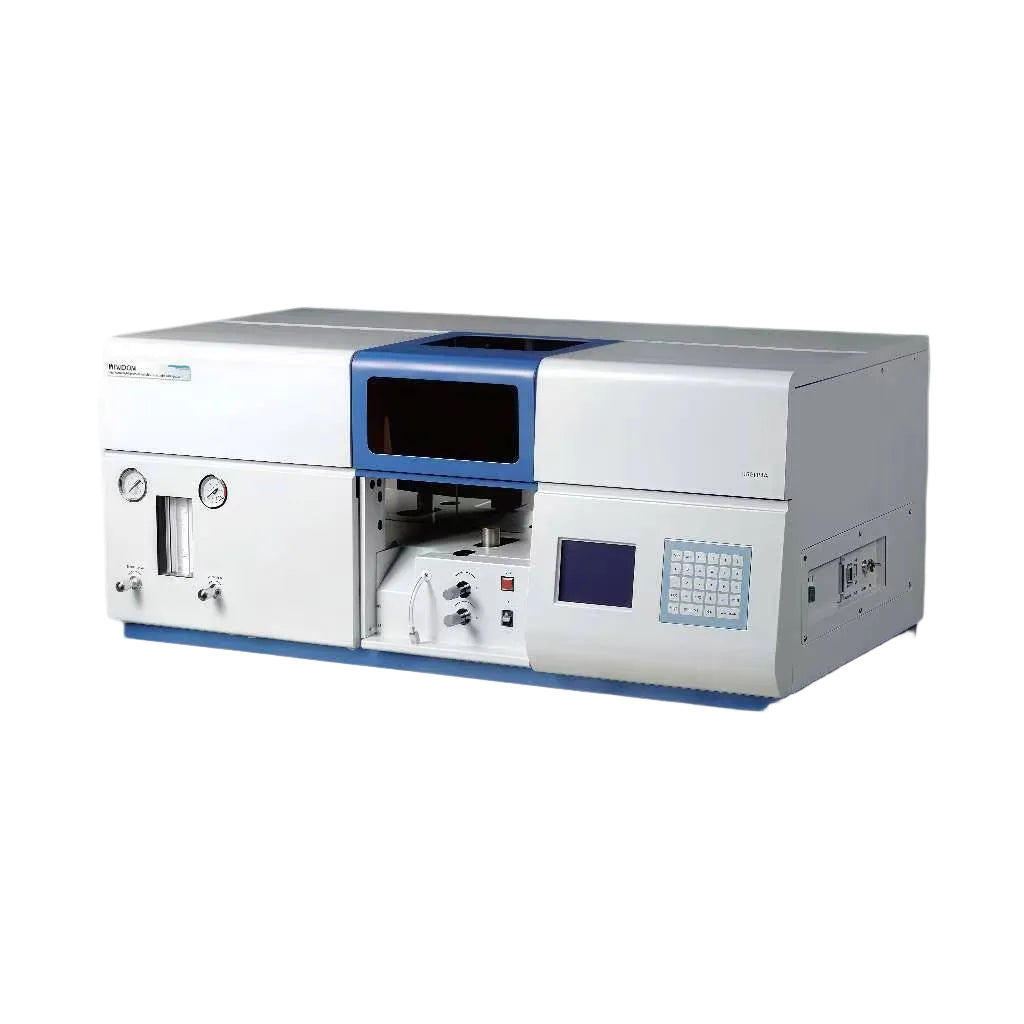

The AA320N series is a high-performance double beam atomic absorption spectrophotometer designed for both flame and graphite furnace operation.

✅ Optical System

• Double beam design – Automatically compensates for light source and wavelength drift
• Wavelength range: 190-900nm
• Wavelength accuracy: ≤±0.5nm
• Wavelength repeatability: ≤0.3nm (single direction)
• Spectral bandwidths: 0.2, 0.4, 0.7, 1.4, 2.4, 5.0nm (6 selectable)
• Baseline stability: ±0.004Abs/30min

✅ Flame AAS Performance

• Characteristic concentration (copper): ≤0.04μg/ml/1%
• Detection limit (copper): ≤0.008μg/ml
• Background correction: Deuterium lamp, >30 times
• Burner: Titanium alloy, corrosion-resistant, fast thermal equilibrium
• Gas system: Precision pressure stabilizing, safety protection for air-acetylene flame

✅ Graphite Furnace AAS (with optional GA3202 system)

• Much higher sensitivity – ppb detection limits
• Temperature range: Ambient to 3000°C
• Programmable temperature control – Multi-step programs for drying, ashing, atomization
• Optional autosampler – For unattended operation

✅ Intelligent Data Processing

• Built-in computer with LCD display
• Functions: Integral holding, peak height and area measurement, auto zero
• Curve fitting: Multi-linear and non-linear
• Report printing: Built-in printer optional
• RS232 interface: For external PC connection

📦 4. Standard and Optional Accessories

✅ Standard Accessories (Flame Configuration)

• Oil-free air compressor
• Glass atomizer
• Copper hollow cathode lamp
• Atomizer unit
• Burner unit (10cm titanium burner)
• Dust cover
• Water-separating gas filter

✅ Optional Accessories

• GA3202 graphite furnace system – For trace analysis
• Hydride generator – For elements like As, Se, Hg
• Hollow cathode lamps – Various elements available
• Graphite tubes – Consumables for furnace operation
• Data processing software – For advanced analysis
• Recirculating cooling water system – For furnace operation
• Autosampler – For unattended analysis

🔧 5. Other Atomization Techniques

✅ Hydride Generation AAS

Hydride generation is a specialized technique for elements that form volatile hydrides, such as arsenic (As), selenium (Se), antimony (Sb), and mercury (Hg). The sample is reacted with a reducing agent (typically sodium borohydride) to form the gaseous hydride, which is then swept into a heated quartz cell for atomization.

Advantages:

• Very high sensitivity for hydride-forming elements
• Separation of analyte from matrix reduces interferences
• Low detection limits (ppb range)

AA320N compatibility: Optional hydride generator available

📊 6. Quick Selection Guide

Your Application	Recommended Configuration	Why
Routine analysis of major elements (ppm levels)	Flame AAS only	Fast, economical, good precision
Trace analysis (ppb levels)	Flame + Graphite Furnace	Graphite furnace provides required sensitivity
Drinking water analysis (regulatory limits)	Flame + Graphite Furnace	Some elements (Pb, Cd) require furnace sensitivity
Environmental monitoring (soils, sediments)	Flame + Graphite Furnace	Major elements by flame, trace by furnace
Food safety testing	Flame + Graphite Furnace + Hydride	Cover all elements: major, trace, and hydride-forming
Pharmaceutical quality control	Flame + Graphite Furnace	Meets regulatory requirements for trace metals
Geological exploration	Flame + Graphite Furnace	Wide concentration ranges require both techniques
Teaching laboratory	Flame AAS only	Simpler, lower cost, good for demonstrations

⚠️ Important Notice

These instruments are designed for laboratory research use only (RUO). They are not medical devices and not intended for clinical diagnostic applications without appropriate validation. Users are responsible for ensuring compliance with all applicable regulations.

❌ Common Mistakes When Choosing an AAS System

• Buying flame-only when trace analysis is needed – Retrofitting a furnace later is more expensive than buying a combined system initially.
• Overlooking hydride generation needs – If you analyze As, Se, or Hg regularly, a hydride generator is essential.
• Not considering sample throughput – Flame is much faster; if you have high sample volumes, ensure you have flame capability.
• Ignoring autosampler options – For unattended operation, especially with furnace, an autosampler is highly recommended.
• Forgetting about lamp inventory – You'll need a hollow cathode lamp for each element you analyze regularly.

✅ Why Choose Meticulab for AAS?

At Meticulab, we supply the AA320N series atomic absorption spectrophotometer for research and industrial applications (RUO):

• High-performance double beam design – Superior stability and accuracy
• Multi-mode capability – Flame, graphite furnace, and hydride generation
• Excellent sensitivity – Flame: ≤0.04μg/ml (Cu), Furnace: ppb levels
• Intelligent data processing – Built-in computer, curve fitting, report printing
• Complete accessories – Graphite furnace, hydride generator, lamps, software
• Custom configurations available – Choose flame-only or combined system
• Fast dispatch from Asia – In-stock items ship within 1-3 days
• Low MOQ – 1 unit available for testing

Explore our product page:

• AA320N Series Atomic Absorption Spectrophotometer

❓ Frequently Asked Questions

Q: What is the difference between flame and graphite furnace AAS?
A: Flame AAS is faster and good for ppm-level analysis, while graphite furnace AAS is 100-1000x more sensitive (ppb levels) but slower and requires more method development.

Q: Can the AA320N be configured with both flame and furnace?
A: Yes, the AA320N can be purchased as a flame-only system, and the GA3202 graphite furnace can be added later as an optional accessory.

Q: What elements can be analyzed by AAS?
A: Over 60 elements can be analyzed by AAS, including metals and metalloids. Common applications include Cu, Zn, Pb, Cd, Ni, Cr, Fe, Mn, and many others.

Q: Do I need a separate hollow cathode lamp for each element?
A: Yes, AAS requires a specific hollow cathode lamp for each element you analyze. The AA320N comes with a copper lamp as standard; additional lamps are available as options.

Q: What is hydride generation used for?
A: Hydride generation is a specialized technique for elements like arsenic (As), selenium (Se), antimony (Sb), and mercury (Hg), providing very high sensitivity and reduced interferences.

Q: What is the minimum order quantity?
A: 1 unit is available for testing. Volume discounts available for multiple units.

Q: What is the typical delivery time?
A: In-stock instruments ship within 1-3 days. Custom configurations may take 4-8 weeks depending on specifications.
