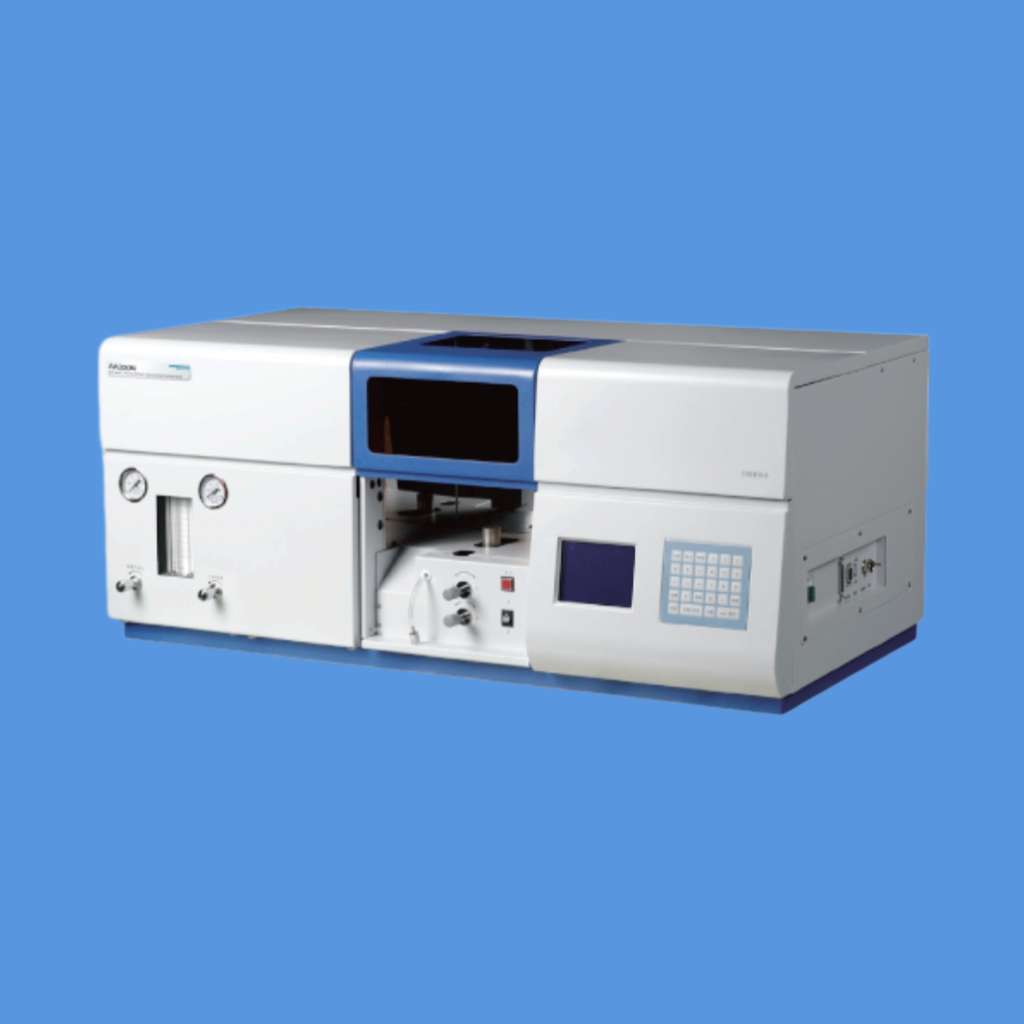

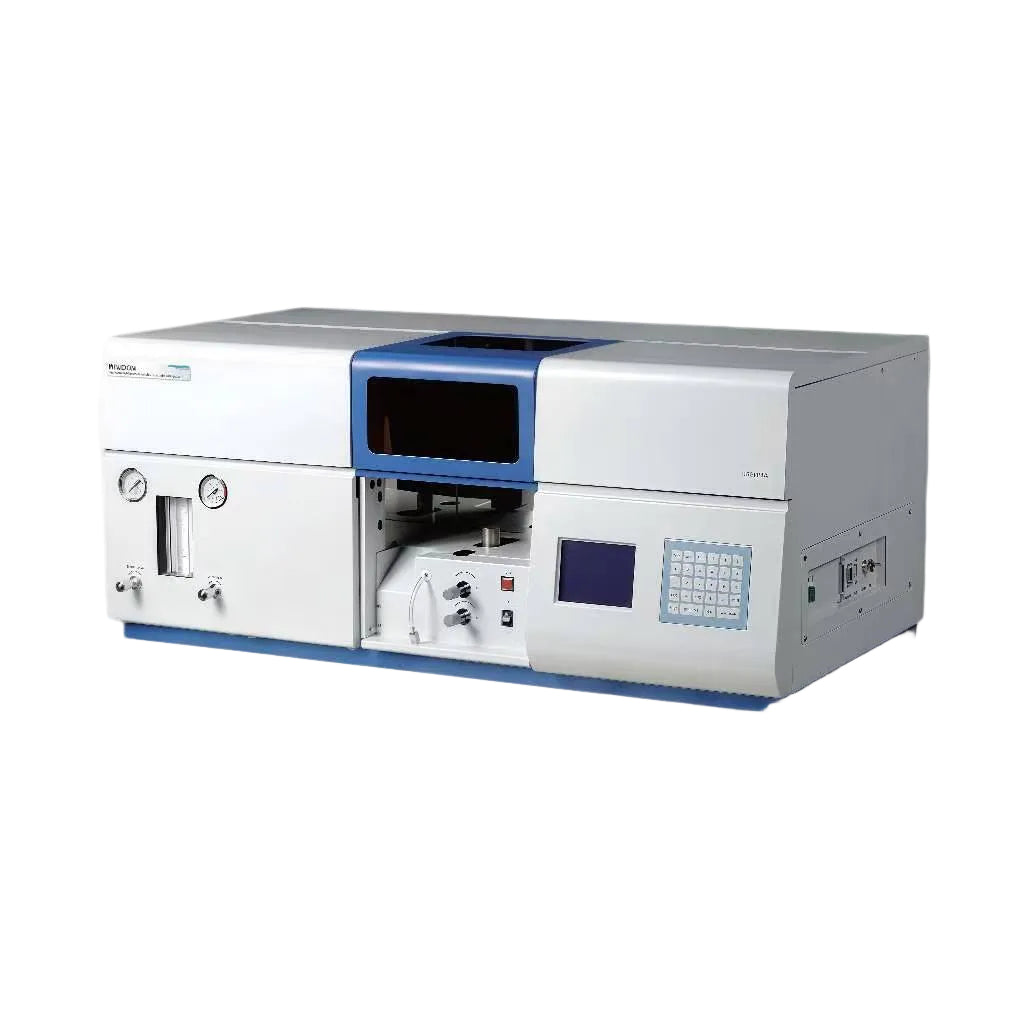

AA320N Series Atomic Absorption Spectrophotometer – Double Beam, Multi-Mode, High Precision

The AA320N series is a high-performance double beam atomic absorption spectrophotometer designed for precise and reliable elemental analysis. Featuring multi-mode analysis capabilities (flame, graphite furnace, hydride generation) and advanced optical design, it delivers exceptional stability and sensitivity for demanding laboratory applications.

🔧 Key Features

Advanced Optical System

• Double-beam design automatically compensates for light source and wavelength drift
• Total reflection system eliminates chromatic aberration across full wavelength range
• High energy optical path enhances light flux for improved sensitivity
• Wavelength range: 190–900nm
• Wavelength accuracy: ≤±0.5nm
• Wavelength repeatability: ≤0.3nm (single direction)

Multi-Mode Analysis Capabilities

• Flame absorption and emission modes
• Graphite furnace atomic absorption (with optional GA3202 system)
• Hydride generation method for trace element analysis
• 6 selectable spectrum bandwidths: 0.2, 0.4, 0.7, 1.4, 2.4, 5.0nm

High Precision Measurement

• Characteristic concentration of copper: ≤0.04μg/ml/1%
• Detection limit of copper: ≤0.008μg/ml
• Background calibration ability: >30 times (deuterium lamp correction)
• Baseline stability: ±0.004Abs/30min
• Resolution: <40%

Intelligent Data Processing

• Built-in computer with LCD display
• Functions include: integral holding, peak height and area measurement, auto zero adjustment
• Multi-linear and non-linear curve fitting
• Working curves displayed on screen
• Report printing capability
• RS232 interface for external PC connection

Reliable & Safe Gas Path System

• Precision pressure stabilizing and current stabilizing devices for stable flame
• Special quick gas conversion and safety protection for air-acetylene flame
• Low noise operation

Durable Atomization System

• Burner made of titanium alloy – corrosion-resistant, fast thermal equilibrium
• No water-cooling required
• Long service life

Quick Analysis

• Cathode lamp requires no long pre-heating
• Immediate sample analysis
• Ideal for multi-element and fast analysis applications

📋 Technical Specifications

📦 Standard Accessories

• Oil-free air compressor
• Glass atomizer

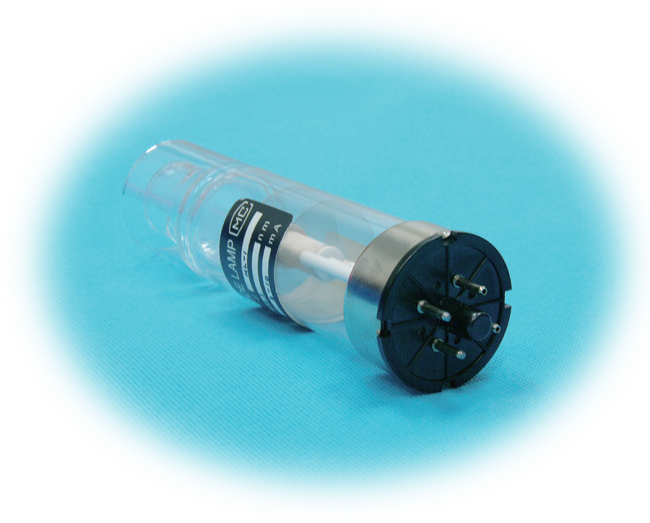

• Copper hollow cathode lamp
• Atomizer unit
• Burner unit (10cm titanium burner)
• Dust cover
• Water-separating gas filter

🔧 Optional Accessories

• GA3202 graphite furnace system
• Hydride generator
• Hollow cathode lamps (various elements)
• Graphite tubes
• Data processing software
• Recirculating cooling water system

🔬 Typical Applications

• Metal element analysis in metallurgy and mining
• Environmental monitoring (water, soil, air)
• Pharmaceutical and biomedical research
• Food and agricultural product testing
• Petrochemical and industrial quality control
• Geological and geological sample analysis

❓ Frequently Asked Questions

Q: What is the minimum order quantity (MOQ) for the AA320N series?
A: 1 unit is available for testing and evaluation. Volume discounts are available for multiple units.

Q: What is the typical delivery time?
A: In-stock instruments ship within 1-3 days from our logistics center in Asia via DHL/FedEx/UPS. Delivery to most countries takes 2-4 business days after dispatch.

Q: Do you provide installation and training?
A: Yes, we provide remote installation support and can arrange on-site training for qualified partners.

Q: What is the warranty period?
A: All AA320N series spectrophotometers come with a 12-month warranty against manufacturing defects.

Q: What is the difference between flame, graphite furnace, and hydride generation modes?
A: Flame mode is suitable for routine analysis of most elements. Graphite furnace mode offers higher sensitivity for trace analysis. Hydride generation is specifically for elements like As, Se, and Hg that form volatile hydrides.

Q: Can I connect the instrument to a PC?
A: Yes, all models feature an RS232 interface for external PC connection. Optional data processing software provides advanced analysis capabilities.
