DNA Shearing for NGS: Ultrasonic vs. Enzymatic – Which Method Is Right for You?

DNA fragmentation is a critical first step in next-generation sequencing (NGS) library preparation. The quality and consistency of fragmentation directly impact library yield, sequencing coverage, and overall data quality.

Two primary methods dominate the field: ultrasonic shearing (mechanical) and enzymatic fragmentation. Each approach has distinct advantages and trade-offs, and the choice between them depends on your specific application, throughput requirements, and laboratory workflow.

This guide compares ultrasonic and enzymatic DNA shearing methods to help you make an informed decision for your NGS workflow.

🔬 1. Understanding DNA Shearing for NGS

NGS platforms require DNA fragments within specific size ranges (typically 200-600 bp for most applications). Since genomic DNA is extracted as high molecular weight material (often >50 kb), it must be fragmented to the appropriate size before library preparation.

Ideal fragmentation should be:

• Reproducible – Consistent fragment size distribution across samples
• Unbiased – No sequence preference that could affect coverage
• Controllable – Ability to target specific size ranges
• Gentle – Minimize sample loss, especially for precious samples
• Scalable – Adaptable to different throughput needs

⚙️ 2. Ultrasonic DNA Shearing

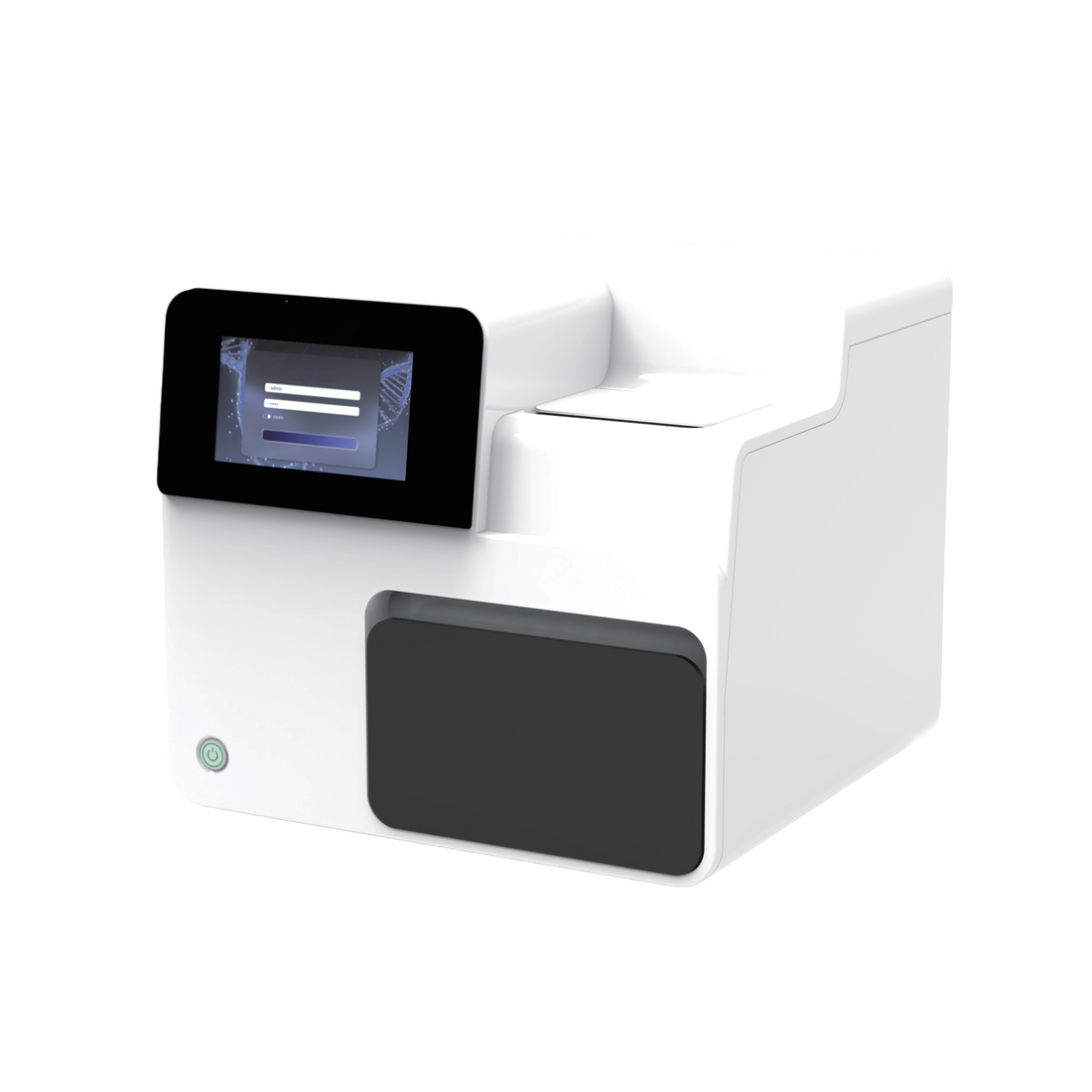

Ultrasonic shearing uses focused acoustic energy to create cavitation forces that mechanically break DNA strands. The Meticulab Ultrasonic DNA Shearer 8 utilizes advanced Adaptive Cylindrical Ultrasonic (ACU) technology for precise, reproducible fragmentation.

✅ How It Works

High-frequency ultrasonic waves are focused through a water bath into the sample tube. The acoustic energy creates millions of microscopic cavitation bubbles that collapse, generating mechanical shear forces that fragment DNA.

✅ Advantages of Ultrasonic Shearing

• No sequence bias – Mechanical shearing is completely sequence-independent, ensuring uniform coverage across the genome
• Highly reproducible – Precise control over energy input produces consistent fragment size distributions
• Non-contact processing – No cross-contamination, no probes to clean, no consumables beyond standard tubes
• Wide size range – Easily adjustable from 100 bp to 5 kb by modifying parameters
• Works with any sample type – gDNA, FFPE DNA, ChIP samples, PCR products
• No enzymatic cleanup required – Fragments are ready for library prep immediately

✅ Limitations

• Higher initial instrument cost – Compared to enzymatic methods
• Batch processing – Most systems process 1-24 samples at a time
• Requires optimization – Parameters may need adjustment for different fragment sizes

✅ Meticulab Ultrasonic DNA Shearer 8 Features

• Adaptive Cylindrical Ultrasonic (ACU) technology – Delivers consistent fragmentation profiles (200-600bp typical for chromatin)
• Flexible throughput – Process 1 to 8 samples in a single run
• Non-contact processing – No cross-contamination, no aerosols, no cleanup required
• Standard consumables – Use common 8-tube strips or single tubes – no special consumables needed
• Direct plate transfer – Samples can be transferred directly from standard plates without manual intervention
• Quiet operation – Low noise and vibration-free
• CB and CE certified – Compliant with international safety standards

🧪 3. Enzymatic DNA Fragmentation

Enzymatic fragmentation uses engineered nucleases (such as Fragmentase) that create double-strand breaks at random sites. The reaction is controlled by time and temperature to achieve the desired fragment size.

✅ How It Works

A mixture of enzymes creates nicks in both DNA strands, and the combination of nicking and complementary strand cleavage results in double-strand breaks. The reaction is incubated at 37°C and stopped by heat inactivation or purification.

✅ Advantages of Enzymatic Fragmentation

• Lower instrument cost – Requires only a thermal cycler or water bath
• Scalable – Can process 96-well plates easily
• Simple protocol – Add enzyme, incubate, stop
• Rapid – Typically 15-30 minutes incubation
• Low input compatibility – Works with nanogram amounts of DNA

✅ Limitations

• Sequence bias – Some enzymes show preference for certain sequences, potentially affecting coverage uniformity
• Batch-to-batch variability – Enzyme activity can vary between lots
• Requires cleanup – Enzymes must be removed before downstream steps
• Less precise control – Fragment size distribution broader than ultrasonic methods
• May not work with all sample types – FFPE samples may fragment differently
• Reaction optimization needed – Time and temperature must be carefully controlled

📊 4. Comparison: Ultrasonic vs. Enzymatic Shearing

Parameter	Ultrasonic Shearing	Enzymatic Fragmentation
Mechanism	Mechanical (cavitation forces)	Enzymatic (nuclease cleavage)
Sequence Bias	None (completely random)	Potential bias depending on enzyme
Reproducibility	Excellent (instrument-controlled)	Good (but enzyme lot variability)
Fragment Size Range	100 bp – 5 kb (adjustable)	Typically 150-800 bp
Sample Throughput	1-8 samples (Ultrasonic Shearer 8)	Up to 96 samples in plate format
Processing Time	2-10 minutes per run	15-30 minutes incubation
Hands-on Time	Minimal (load and start)	Minimal (add enzyme, incubate)
Consumables	Standard tubes/strips	Enzymes + purification supplies
Cross-Contamination Risk	None (non-contact)	Low (sealed plates)
Instrument Cost	Higher initial investment	Low (uses existing thermal cycler)
Per-Sample Cost	Very low (no consumables)	Moderate (enzyme cost)
FFPE Sample Compatibility	Excellent	Variable, may require optimization
Cleanup Required	No	Yes (enzyme removal)

📋 5. Meticulab Ultrasonic DNA Shearer 8 Specifications

Specification	Details
Sample Throughput	1–8 samples per run
Fragment Size Range	100 bp – 5 kb (adjustable via parameters)
Sample Volume	30–150 μL (extendable to milliliter scale)
Technology	ACU™ (Adaptive Cylindrical Ultrasonic)
Supported Consumables	8-tube strips, single tubes, standard PCR plates (with adapter)
Automation Integration	Optional (can be integrated into automated workflows)
User Interface	Touch screen
Dimensions (W×D×H)	438 mm × 417 mm × 385 mm
Weight	25 kg
Power Requirements	220V/50Hz or 110V/60Hz
Operating Environment	10°C to 30°C, 20–80% humidity, 80–106 kPa

🔧 6. Applications

• DNA shearing for NGS library preparation – Whole genome, exome, targeted panels
• Chromatin shearing for ChIP-seq – 200-600bp fragments ideal for immunoprecipitation
• RNA fragmentation for RNA-seq
• FFPE sample fragmentation – Works well with degraded samples
• Cell lysis and nucleic acid extraction – Gentle lysis for downstream applications

⚙️ 7. OEM/ODM Customization Options

The Ultrasonic DNA Shearer 8 is available for private labeling and white-label solutions:

• Private label & branding – Your logo, colors, and packaging
• White-label solutions – Ready for your brand identity
• Custom throughput – Higher sample capacity (e.g., 96-well format) available upon request
• Software customization – Tailored protocols and user interface
• Integration support – API for robotic integration

📊 8. Quick Selection Guide

Your Priority	Recommended Method	Why
Highest reproducibility and unbiased coverage	Ultrasonic	Mechanical shearing has no sequence bias
Maximum throughput (96-well plates)	Enzymatic	Easily scalable in plate format
Low per-sample cost	Ultrasonic	No consumable costs after instrument purchase
Lowest instrument investment	Enzymatic	Uses existing thermal cycler
FFPE samples	Ultrasonic	More consistent with degraded DNA
Minimal hands-on time	Either	Both require minimal hands-on time
Flexible fragment size control	Ultrasonic	Easily adjustable from 100bp to 5kb

⚠️ Important Notice

This instrument is designed for laboratory research use only (RUO). It is not a medical device and not intended for clinical diagnostic applications without appropriate validation. To protect our OEM/ODM partners, manufacturer names and internal model numbers are not disclosed.

❌ Common Mistakes When Choosing DNA Shearing Methods

• Ignoring sequence bias – For applications requiring uniform coverage (e.g., CNV detection), ultrasonic shearing is preferred.
• Underestimating throughput needs – If you routinely process 96 samples, enzymatic methods may be more practical despite higher per-sample cost.
• Not considering sample types – FFPE samples often perform better with ultrasonic shearing.
• Focusing only on instrument cost – Consider total cost including consumables over time.
• Assuming all ultrasonic systems are the same – Technology varies; ACU technology provides superior consistency.

✅ Why Choose Meticulab for Ultrasonic Shearing?

At Meticulab, we supply the Ultrasonic DNA Shearer 8 for research and diagnostic applications (RUO):

• Advanced ACU technology – Consistent, reproducible fragmentation
• Non-contact processing – No cross-contamination
• Standard consumables – Use common 8-tube strips, no proprietary plastics
• Flexible throughput – 1-8 samples per run
• Quiet operation – Comfortable in any lab environment
• OEM/ODM customization – Build your own brand
• Fast dispatch from Asia – In-stock items ship within 1-3 days
• Low MOQ – 1 unit available for testing

Explore our product page:

• Meticulab Ultrasonic DNA Shearer 8 – Focused Ultrasonicator for DNA/RNA Fragmentation

❓ Frequently Asked Questions

Q: What fragment sizes can the Ultrasonic DNA Shearer 8 achieve?
A: The system can generate fragments ranging from 100 bp to 5 kb depending on parameters. Typical chromatin shearing yields 200-600 bp fragments suitable for ChIP-seq.

Q: Can I use my own consumables?
A: Yes! The system is designed to work with standard 8-tube strips and single tubes. No proprietary consumables are required, significantly reducing running costs.

Q: How many samples can I process at once?
A: The standard model processes 1 to 8 samples per run. Higher throughput versions (e.g., 96-well) are available for OEM/ODM customization.

Q: Is this instrument compatible with automated workflows?
A: Yes, the system can be integrated into automated liquid handling workstations. API and integration support are available for OEM partners.

Q: How does ultrasonic shearing compare to enzymatic methods for FFPE samples?
A: Ultrasonic shearing generally provides more consistent results with FFPE samples, which often have damaged DNA that may not fragment uniformly with enzymes.

Q: What is the minimum order quantity?
A: 1 unit is available for testing. Volume discounts available for multiple units. OEM/ODM orders have varying MOQs based on customization level.

Q: What is the typical delivery time?
A: In-stock instruments ship within 1-3 days. Custom OEM configurations may take 4-8 weeks depending on specifications.
