METICULAB UV-Grade CaF₂ Biconcave Meniscus Lens
METICULAB UV-Grade CaF₂ Biconcave Meniscus Lens

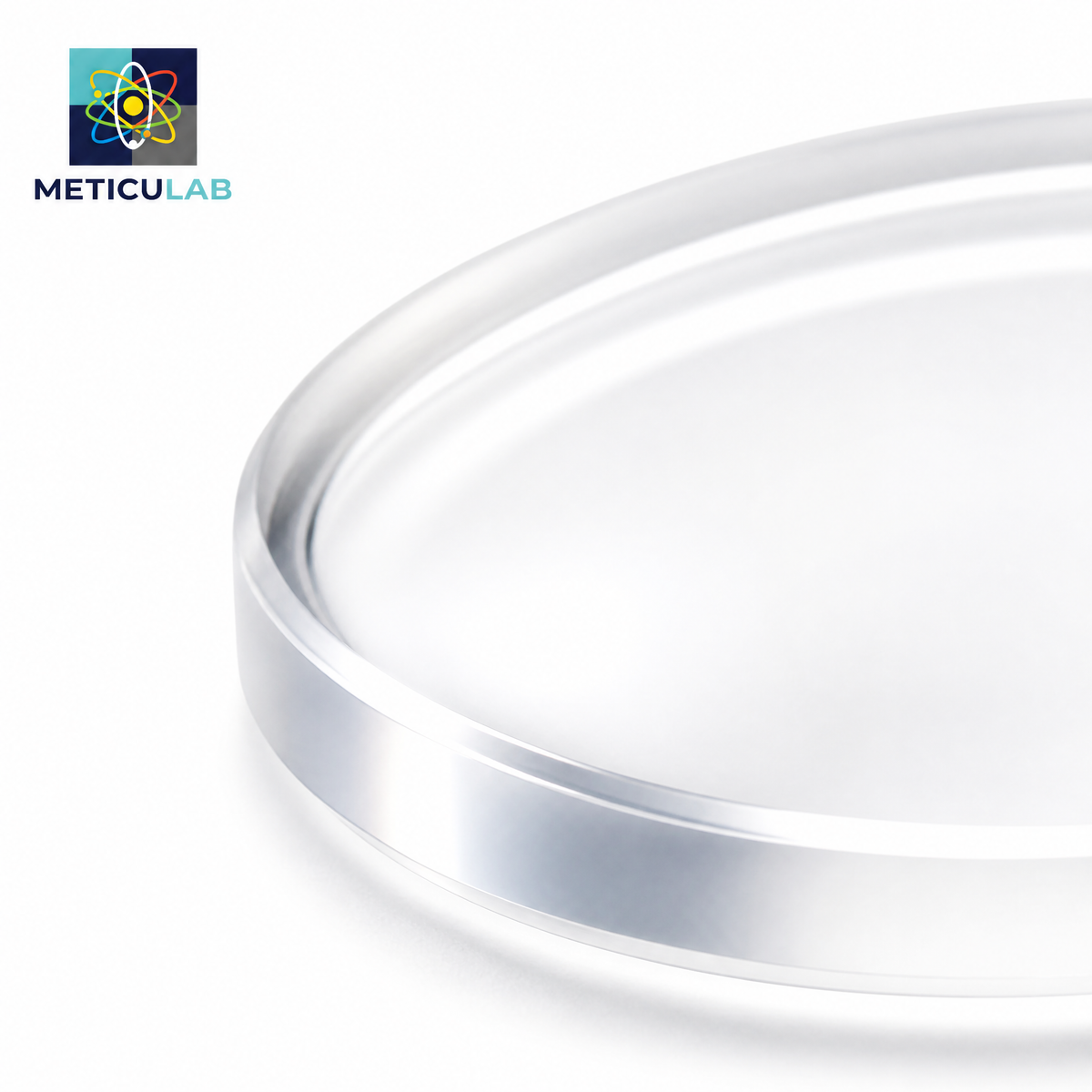

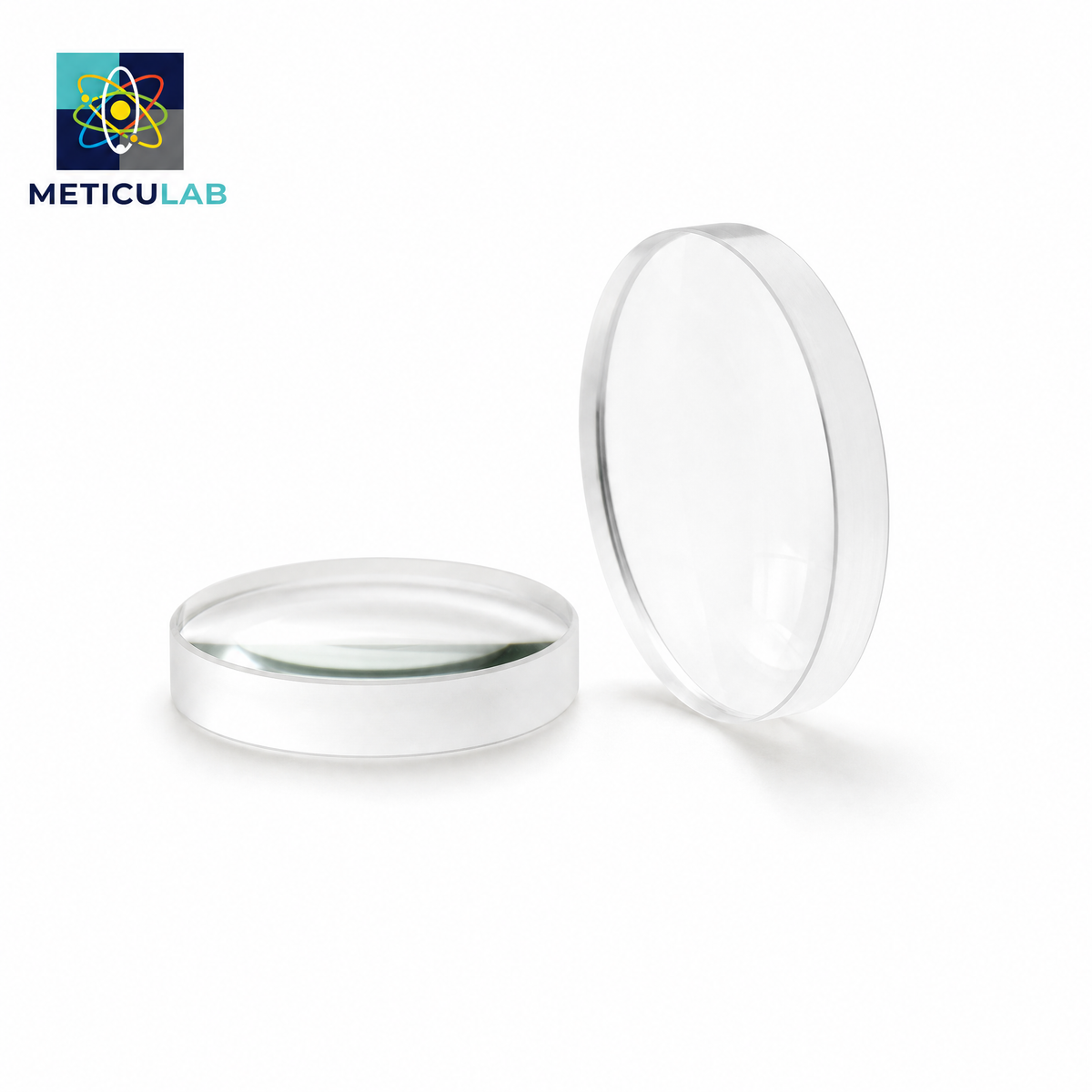

METICULAB UV-Grade Calcium Fluoride (CaF₂) Biconcave Lens – Precision Optics for DUV Lithography, Laser Systems & Spectroscopy
The METICULAB™ UV-Grade Calcium Fluoride (CaF₂) Biconcave Lens is precision-engineered for demanding deep-ultraviolet (DUV) to mid-infrared (MIR) optical applications. Manufactured from high-purity single-crystal CaF₂, it delivers excellent transmission from 190nm to 7μm, solving the severe absorption limitations of fused silica in extreme UV wavelengths. Available in custom diameters from Φ8mm to Φ100mm, with surface figure down to PV ≤30nm and Sa ≤0.2nm. Every shipment includes full interferometer and AFM inspection reports. Ideal for DUV lithography, semiconductor inspection, high-power laser systems, and analytical instruments.
Technical Specifications
| Brand | METICULAB |
| Product Type | UV-Grade CaF₂ Biconcave Lens |
| Material | UV-Grade Calcium Fluoride (CaF₂) Single Crystal |

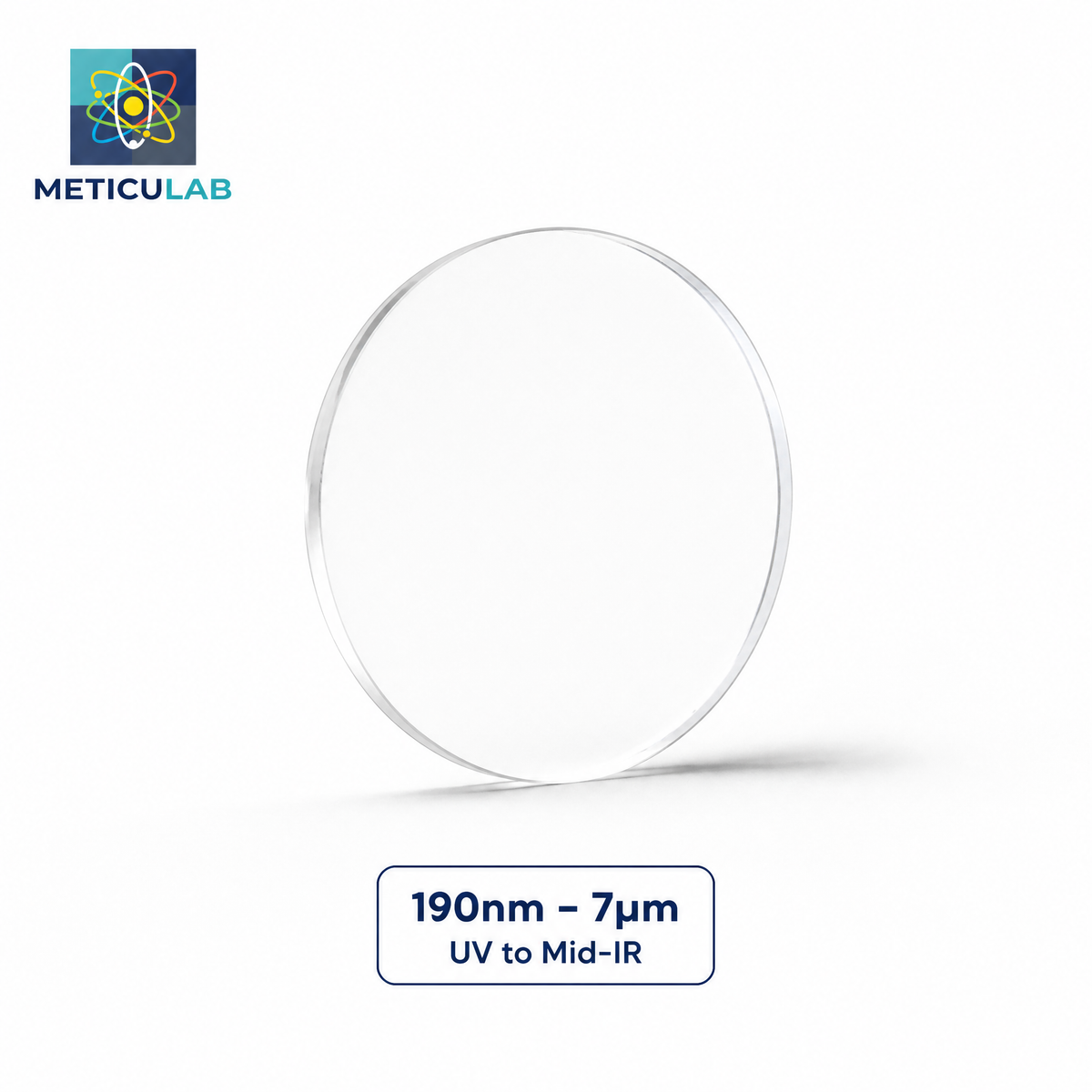

| Transmission Range | 190nm – 7μm (Deep-UV to Mid-IR) |
| Surface Accuracy (PV) | ≤30nm @632.8nm (Typical: 14.8nm) |
| Surface Accuracy (RMS) | ≤3nm @632.8nm (Typical: 1.7nm) |
| Surface Roughness (Sa) | ≤0.2nm (AFM Verified) |
| Diameter Range | Φ8 – Φ100mm (Tolerance: ±0.01mm) |

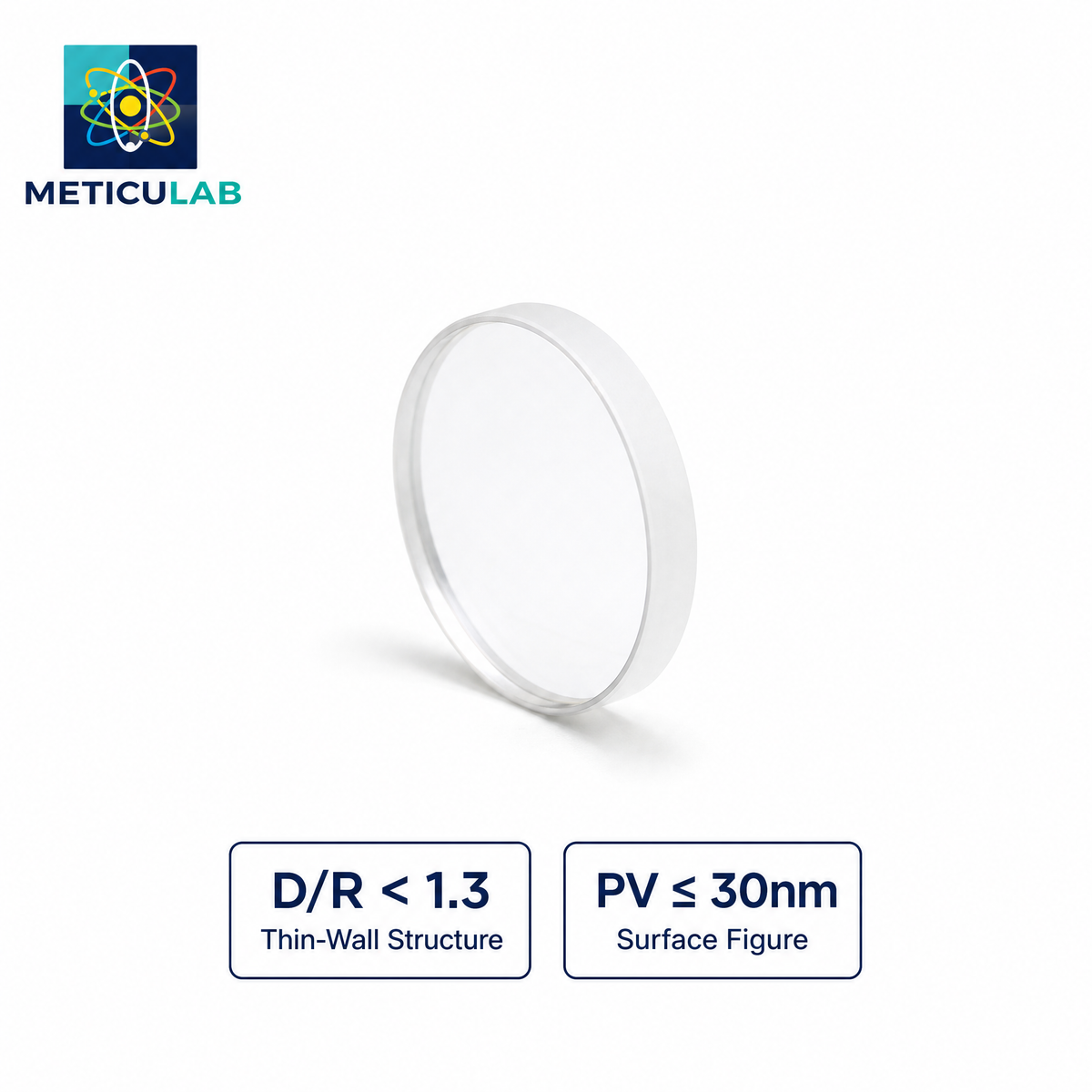

| D/R Ratio | ＜1.3 (Supports Thin-Wall Meniscus) |
| Centration Error | ＜15 arcsec |
| Surface Quality | 40/20 Scratch/Dig (US MIL) |
| Coating | Uncoated / AR Coating (DUV/VIS/IR) Customizable |
| Quality System | ISO 9001 Certified, Cleanroom Manufactured |
| Inspection Reports | Zygo Interferometer + AFM + Centration Test |
Available Models & Custom Options
| Model | Type | Diameter | Coating | Sample |
|---|---|---|---|---|
| MET-CAF2-025 | Biconcave | Φ25.4mm | Uncoated | 1 pc available |
| MET-CAF2-050 | Biconcave | Φ50.8mm | Uncoated | 1 pc available |
| MET-CAF2-MEN | Meniscus | Custom (8-100mm) | AR Coating Optional | CAD Drawing Required |
| MET-CAF2-CUS | Custom Geometry | OEM/ODM | DUV/VIS/IR AR | Submit Drawing |

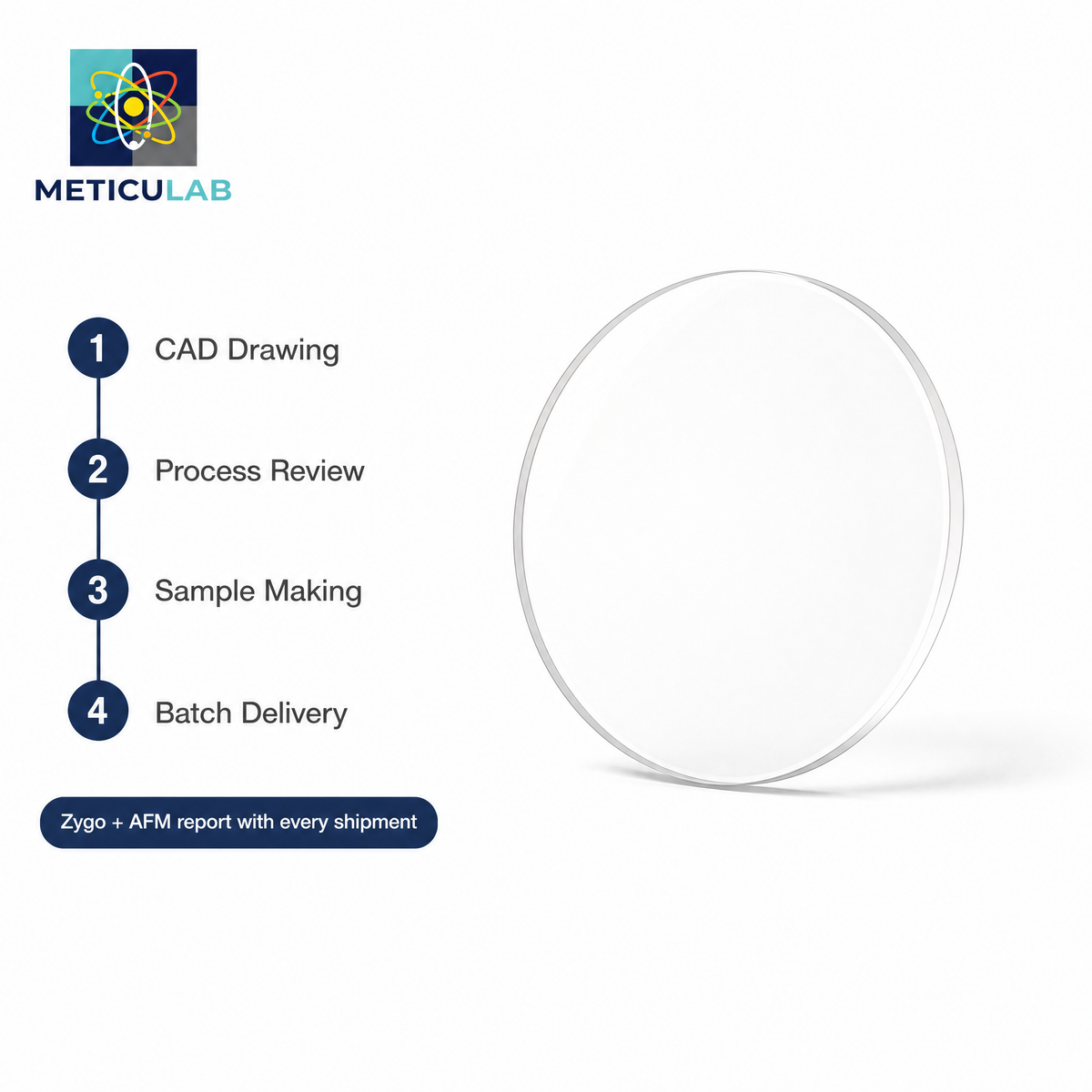

Note: OEM/ODM branding, custom geometries, and AR coatings (DUV/VIS/IR) available upon request. Full inspection reports included with every shipment.
Key Advantages
- Deep-UV to Mid-IR Transmission: Excellent transmission from 190nm to 7μm – solves the absorption limitations of fused silica in extreme UV wavelengths.
- Sub-Nanometer Surface Quality: PV ≤30nm, RMS ≤3nm, Sa ≤0.2nm. Typical measured results: PV 14.8nm, RMS 1.7nm by Zygo interferometer.
- Proven Measured Performance: Sa 0.15-0.47nm verified by AFM – every shipment backed by real inspection data.
- Low Dispersion & High Uniformity: Ensures beam transmission accuracy, prevents spectral shift and imaging distortion.

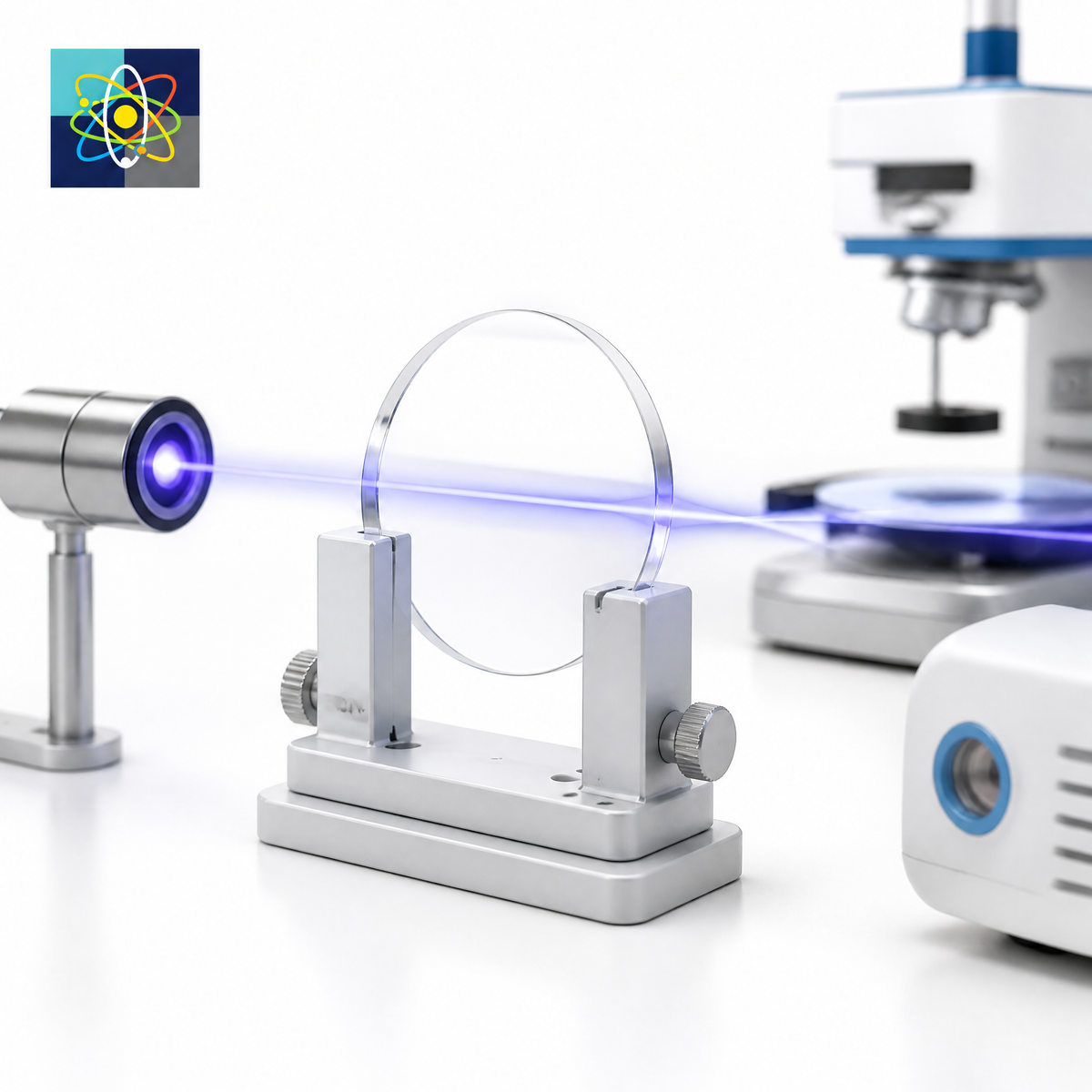

- High Laser Damage Threshold: Suits high-power laser scenarios, extending equipment service life in demanding applications.
- Wide Size Range & Tight Tolerances: Diameter 8-100mm with ±0.01mm tolerance, center thickness ±0.02mm, centration ＜15 arcsec.
- Full Documentation: 100% dimensional inspection, Zygo interferometer report, AFM roughness report, material certificate, and spectral curve included.
Applications
DUV Lithography · Semiconductor Wafer Inspection · High-Power Laser Systems · Spectroscopy & Analytical Instruments · Metrology & Precision Measurement · Research Laboratories · Optical System Integration
