Ultra-Precision Sapphire Orifices — Micro-Hole ID Down to 0.03mm with ±0.002mm Tolerance

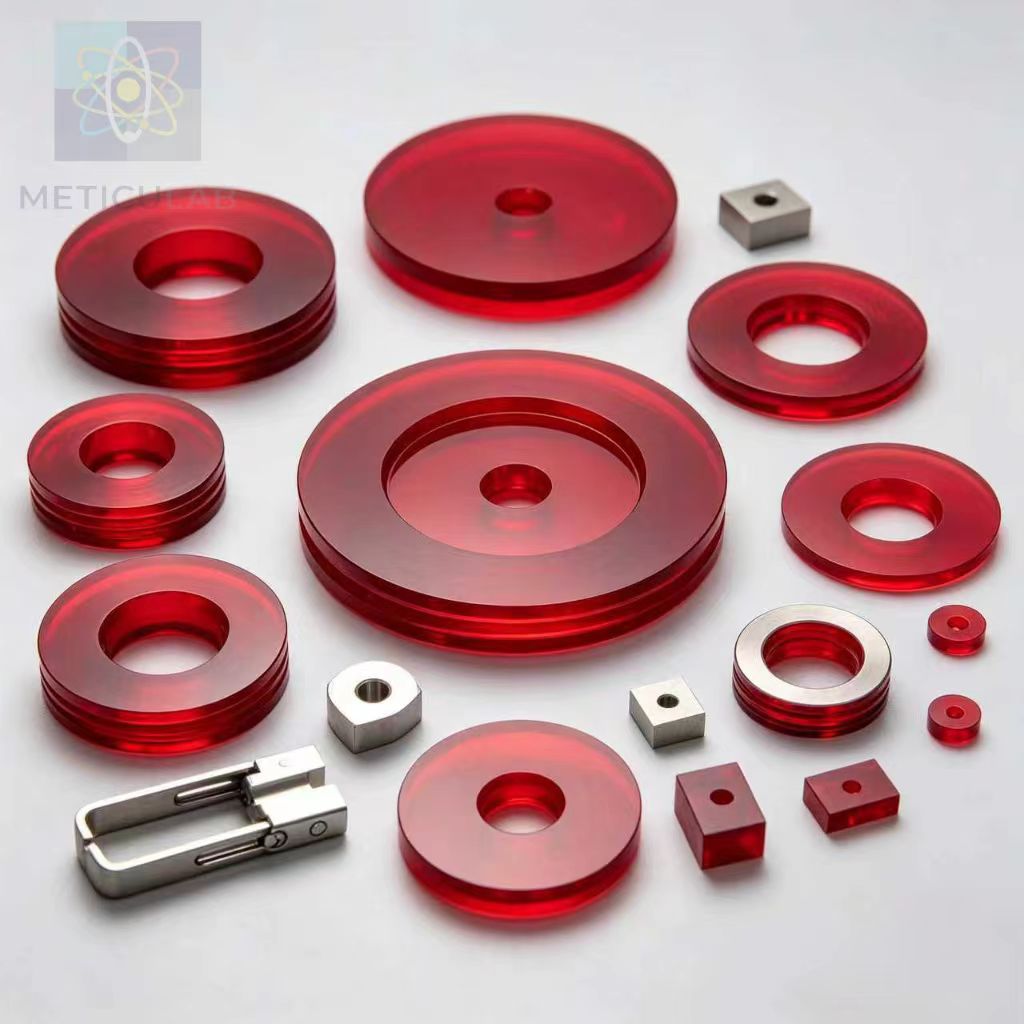

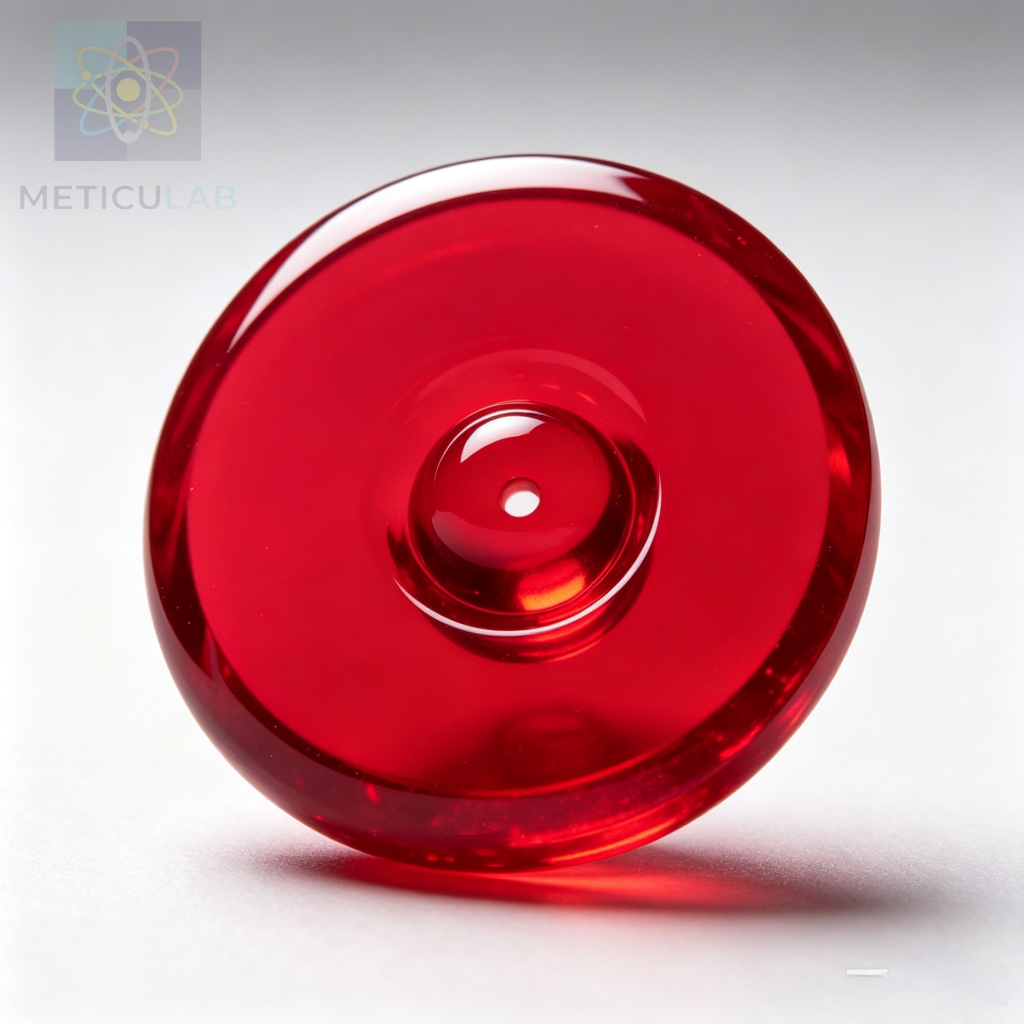

METICULAB precision sapphire and ruby orifices are engineered for applications demanding extreme flow control accuracy. With hole diameters as small as 0.03mm and tolerances as tight as ±0.002mm, these micro-components deliver consistent, repeatable flow characteristics across millions of cycles — even in abrasive, corrosive, or high-pressure environments.
⭐ Key Features & Advantages
Extraordinary inner diameter accuracy of 2 microns ensures highly predictable and repeatable flow rates for gases and liquids.
Ultra-fine drilling capability supports high-resolution inkjet printing, particle counting, and precise micro-dispensing applications.
Virtually immune to erosion and deformation. Ideal for high-pressure water jet cutting and abrasive fluid control — significantly longer lifespan than metal nozzles.
Optimized spray patterns and fluid dynamics with specific cone angles and depth profiles machined to your CAD specifications.
100% resistant to most acids, alkalis, and corrosive reagents. Zero sample contamination — meets strict laboratory and medical standards.
Precision lapping ensures clean, sharp edges for accurate flow characteristics and minimal turbulence — consistent performance across millions of cycles.

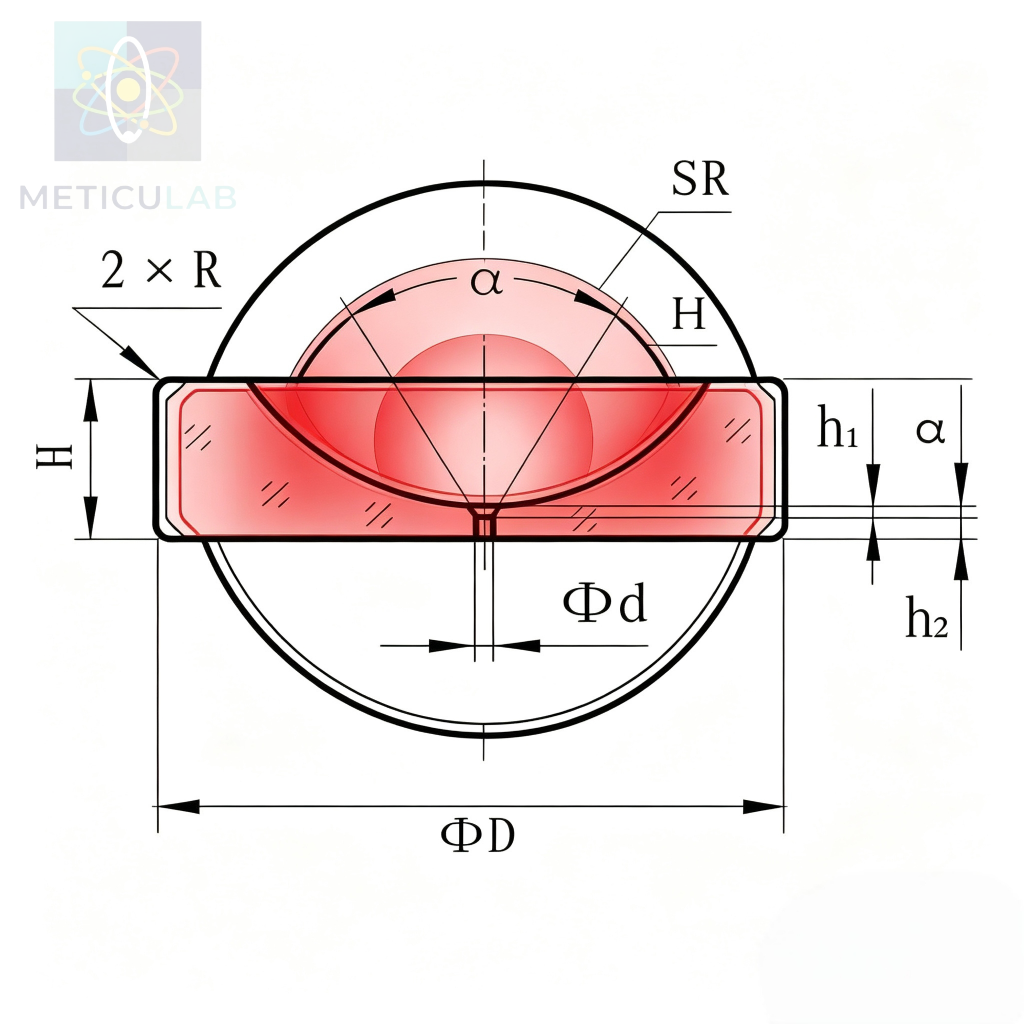

🔨 Technical Specifications
| Material | Synthetic Sapphire (Al₂O₃) / Ruby |
| Hardness (Mohs) | 9 Extreme Wear Resistance |
| Inner Diameter (ID) | 0.03mm - 0.18mm |
| ID Tolerance | ± 0.002mm |
| Outer Diameter (OD) | 0.60mm - 10.00mm |
| Total Height (H) | 0.05mm - 3.00mm |
| Cone Angle (α) | 14° - 120° (±3°) |
| Surface Finish (Ra) | < 0.01µm (Super-polished) |
🏆 Typical Applications
METICULAB sapphire orifices are widely used in precision fluid control applications, including:
- Flow Meters & Flow Control Devices
- Analytical Instruments (Chromatography, Spectroscopy)
- Medical Devices (Blood Analyzers, Microfluidics)
- Inkjet Printing & Coding Systems
- Ultra-High Pressure Water Jet Cutting
- Pneumatic Regulators & Control Valves
⚙ Custom OEM Orders Available
Need a non-standard ID, cone angle, or custom geometry? Our in-house lapping and micro-machining facility supports custom manufacturing with a lead time of just 5-7 business days for prototypes. Send us your CAD drawing for a free DFM review and quote within 24 hours.
💬 Frequently Asked Questions
Q: What is the minimum hole diameter you can manufacture?
A: We can produce sapphire orifices with hole diameters as small as 0.03mm (30μm) with a tolerance of ±0.002mm.
Q: What is the tolerance on the inner diameter?
A: We hold ±0.002mm (2 microns) on the ID — suitable for critical flow control and calibration applications.
Q: What is the typical lead time for custom orifices?
A: Prototype orders: 5-7 business days. Production orders: 2-4 weeks based on quantity.
Q: What is the MOQ for custom sapphire orifices?
A: No strict MOQ for prototypes (1-10 pcs welcome). Production orders: 50-100 pcs depending on complexity.
Q: Can you provide inspection reports with shipments?

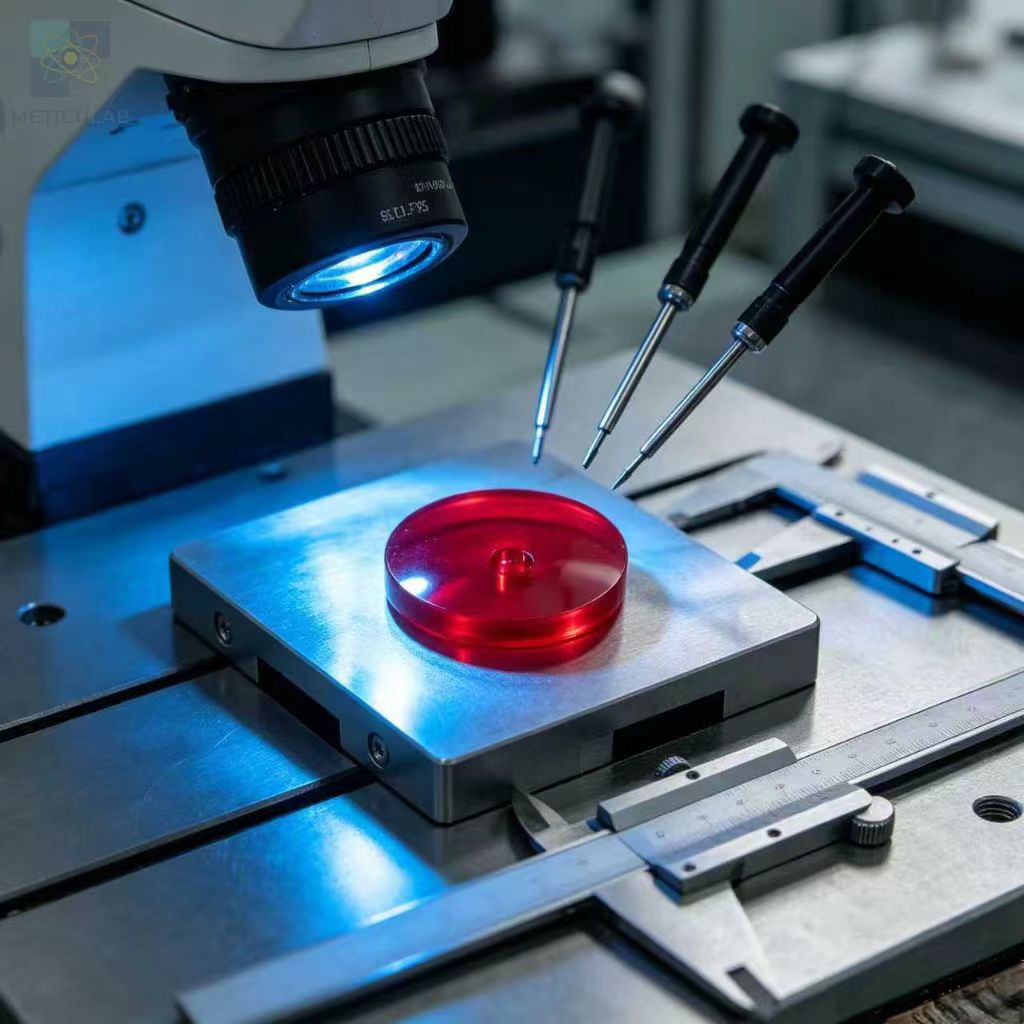

A: Yes. 100% dimensional inspection reports, material certificates, and surface finish measurements are provided with every shipment.
Q: Can sapphire orifices be mounted into metal housings?
A: Yes. We supply as loose jewels or pre-mounted into brass, stainless steel, or custom housings per your requirements.
Q: What cone angles can you machine?
A: We support custom cone angles from 14° to 120° with a tolerance of ±3°, based on your CAD drawing.
Q: What industries use these sapphire orifices?
A: Flow meters, analytical instruments, blood analyzers, inkjet printing systems, water jet cutting, and pneumatic/hydraulic controls.
