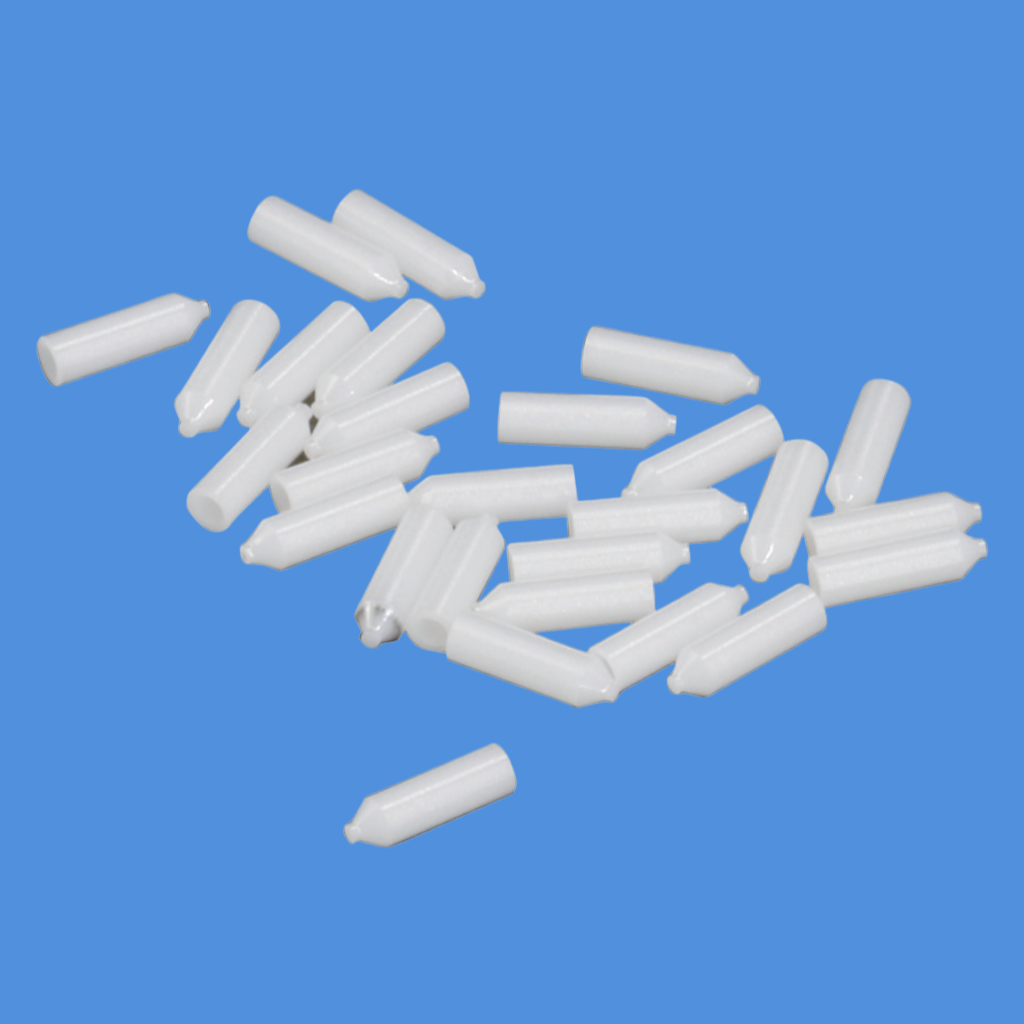

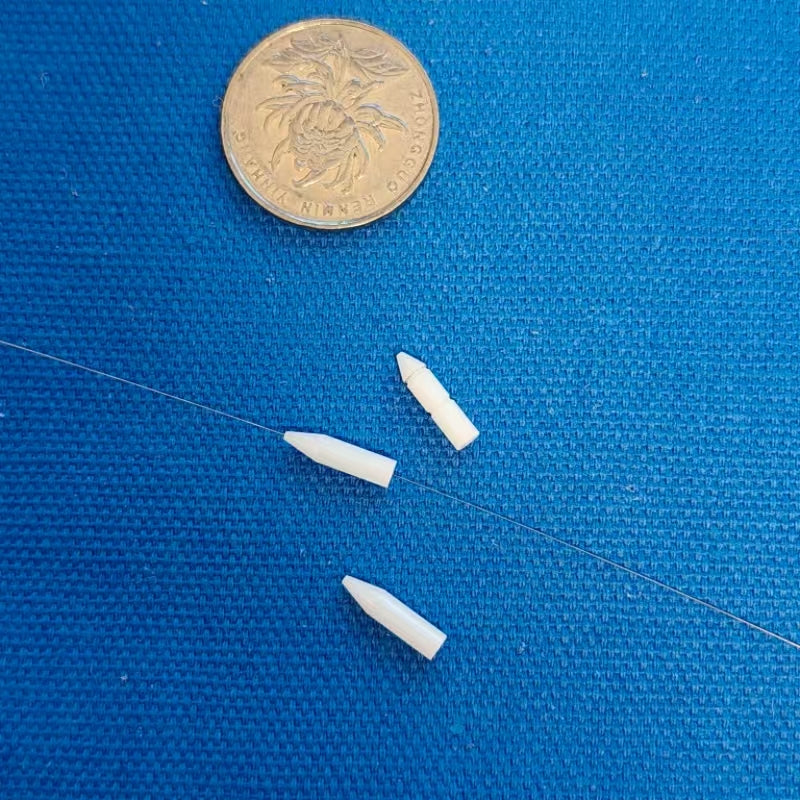

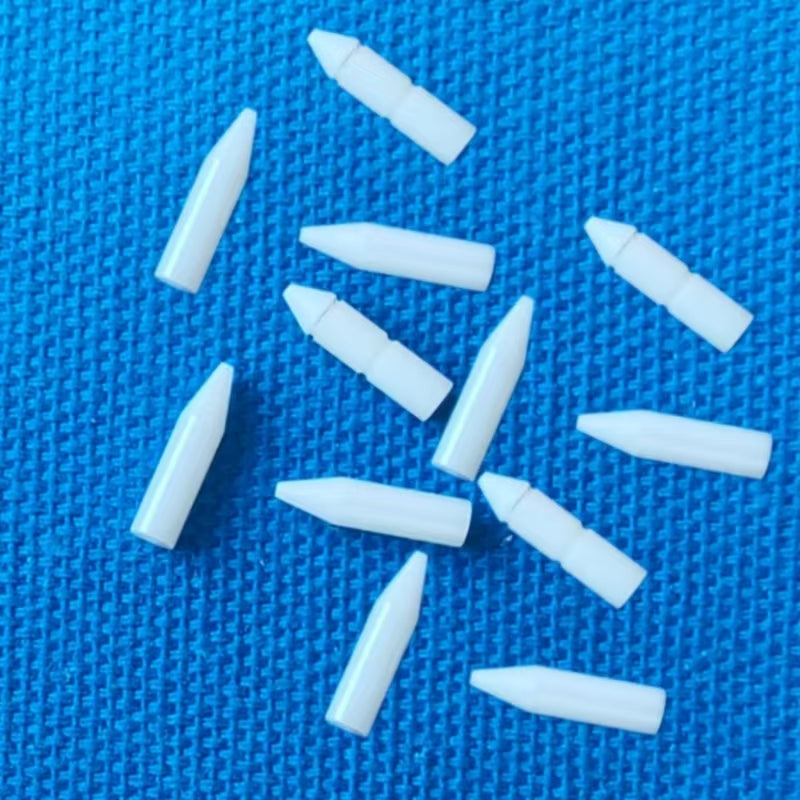

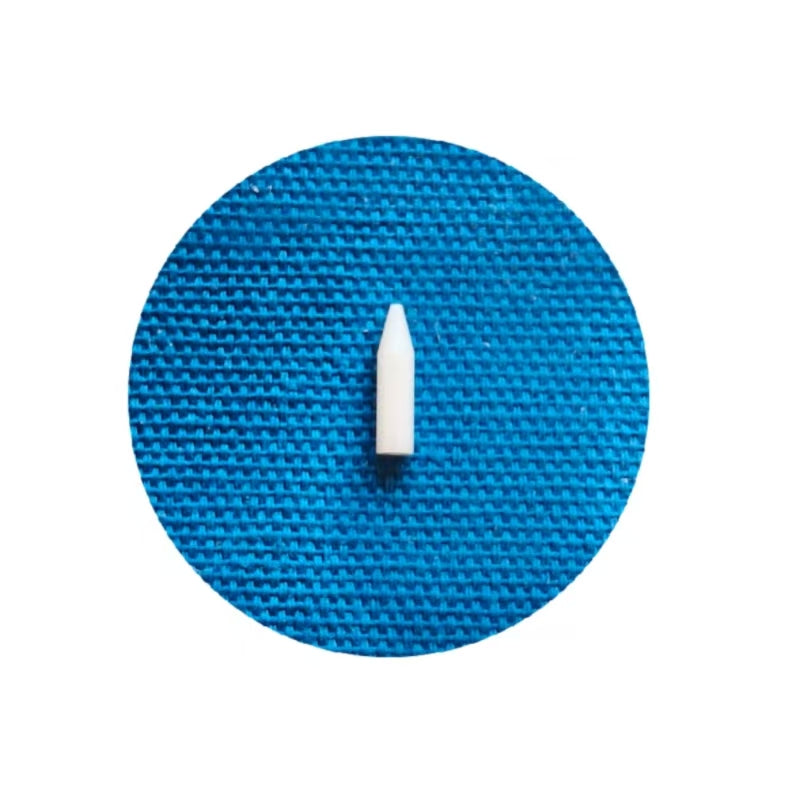

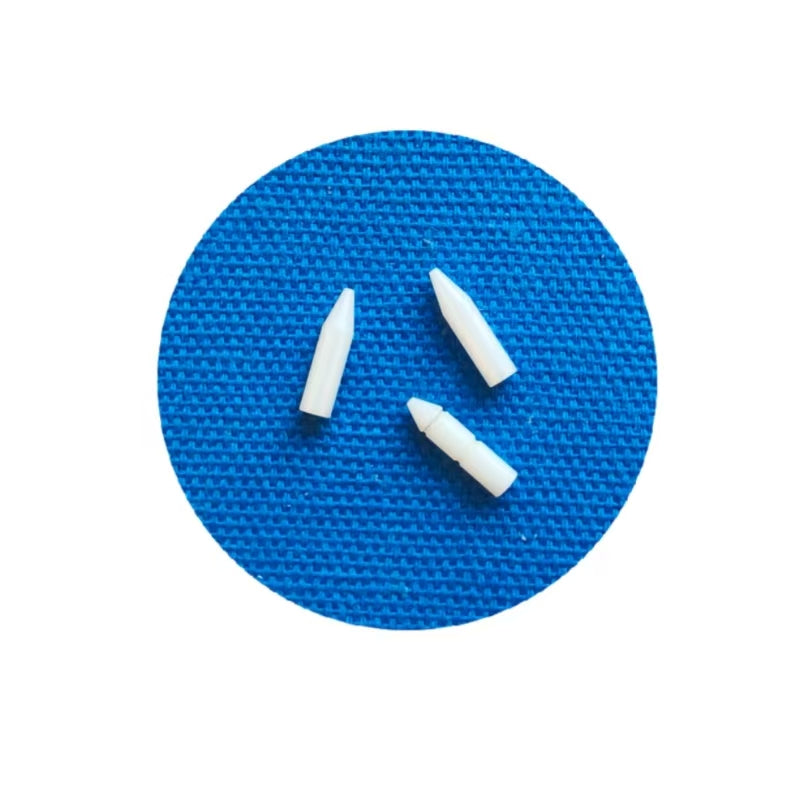

METICULAB High Precision Zirconia Ceramic Ferrule
Compatible with LC, SC, FC, ST, and MU fiber optic connectors. Universal fit for single‑mode (9/125μm) and multi‑mode (50/125μm, 62.5/125μm) fiber assemblies.
METICULAB ceramic ferrules are manufactured from nano‑zirconia (ZrO₂) using precision micro‑hole processing technology. They deliver ≤1μm concentricity (single‑mode), ≤0.2dB insertion loss, and excellent durability – 500‑cycle insertion loss variation <0.3dB. Available in standard LC/SC/FC sizes and fully customizable outer diameter (0.5‑3.5mm), inner diameter (0.1‑1.0mm) and length (3‑15mm).
✅ Why Choose METICULAB Ceramic Ferrules?
Fast Dispatch from Asia: Standard stock items ship within 48 hours via DHL/FedEx/UPS
Low MOQ: 10 pieces available for R&D prototyping; volume discounts for bulk orders
Telecom‑Grade Precision: Concentricity ≤1μm (SM), inner hole roundness error ≤0.5μm
Custom Manufacturing: OEM/ODM to your drawing – OD/ID/length, end face angle (PC/UPC/APC), 1:1 sample replication
RoHS Compliant: Suitable for global export markets (EU, US, Japan, Korea)
📊 Product Specifications – Standard Models
Parameter LC Ferrule SC/FC Ferrule
Outer Diameter (OD) Φ1.249±0.0005mm Φ2.499±0.0020mm
Inner Diameter (ID) Φ0.1255±0.001mm (SM) Φ0.1255±0.001mm (SM)
Concentricity ≤1μm (SM) / ≤3μm (MM) ≤1μm (SM) / ≤3μm (MM)
Length 6.45±0.05mm 10.50±0.05mm
Insertion Loss ≤0.2dB ≤0.2dB
Return Loss (UPC) ≥50dB ≥50dB
Return Loss (APC) ≥60dB ≥60dB
Operating Temp -40℃ ~ +85℃ -40℃ ~ +85℃
Material Nano Zirconia (ZrO₂) Nano Zirconia (ZrO₂)
✅ Non‑Standard Customization Range
Parameter Customizable Range
Outer Diameter (OD) Φ0.5mm ~ Φ3.5mm
Inner Diameter (ID) Φ0.1mm ~ Φ1.0mm
Length 3.0mm ~ 15.0mm
Concentricity ≤3μm or as per drawing
End Face Angle 0° (PC), 8° (APC), Custom
Material Zirconia / Alumina Ceramic
We support 1:1 sample replication from your drawing or existing ferrule sample. Sample delivery: 3‑5 working days.
📦 Shipping Details (for box of 100 pcs standard ferrule – example)
Parameter Specification
Box Dimensions (L×W×H) 20 cm × 15 cm × 10 cm
Gross Weight 0.6 kg per box (approx.)
🔬 Typical Applications
Fiber optic connector assembly (LC/SC/FC/ST/MU)
Optical transceiver modules (SFP, SFP+, QSFP)
FTTH drop cables and ODN network equipment
Fiber optic test instruments (OTDR, power meter)
Industrial lasers and medical optical systems
⚙️ Custom Manufacturing Available
We offer full OEM/ODM customization for ceramic ferrules:
Custom outer diameter, inner diameter or total length
Special end face geometry (PC, UPC, APC, custom angle)
High‑precision concentricity down to ≤1μm for demanding single‑mode applications
Private labeling (laser marking on ferrule body)
Custom packaging (tray, bulk, anti‑static bag)
Contact us with your specifications or CAD drawing for a quotation.
❓ Frequently Asked Questions
Q: What is the minimum order quantity (MOQ)?
A: 10 pieces for R&D testing (stock LC/SC). Volume discounts apply for orders ≥200 pieces. Custom ferrule MOQ typically 200 pieces.
Q: Are these ferrules compatible with my existing connector hardware?
A: Yes. Standard LC, SC, FC and ST ferrules fit all mainstream connector housings (e.g., from Senko, Diamond, Sumitomo, Tyco). For non‑standard OD, please send your drawing for compatibility check.
Q: What is the typical delivery time?
A: Stock items ship within 48 hours from our Asia hub. Delivery to most countries takes 4‑5 business days via DHL/FedEx/UPS. Custom orders: sample 3‑5 days, mass production 7‑12 days after sample approval.
Q: Can I get a custom inner diameter smaller than 0.1255mm?
A: Yes, we can go down to 0.1mm inner diameter. Please provide your fiber size (e.g., 80μm cladding) and required concentricity for evaluation.
Q: What is the insertion loss variation after 500 matings?
A: <0.3dB typical, based on Telcordia GR‑326 standard testing.
Q: Do you provide RoHS / REACH compliance certificates?
A: Yes. We can provide RoHS, material analysis, and concentricity test reports with each batch upon request.
