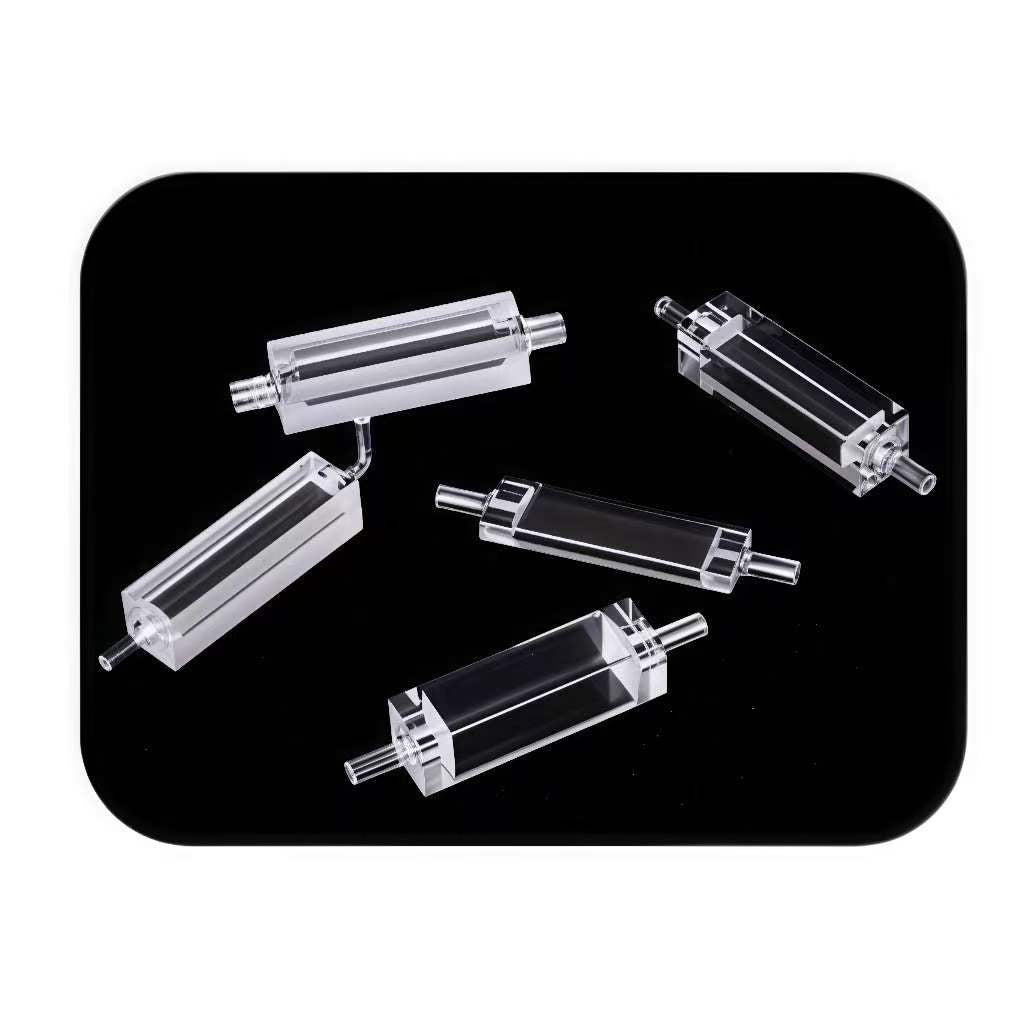

Custom Optical Cuvettes – Tailored to Your Analytical & Diagnostic Applications
Special shapes | Multi-chamber structures | Custom path lengths | Integrated ports | Quartz, glass, optical plastics
We manufacture custom optical cuvettes tailored to specific analytical and diagnostic applications. From non-standard dimensions to integrated structures, we provide precision optical components designed to meet unique instrument requirements.
✅ Why Partner with Meticulab for Custom Cuvettes?
- Fast Prototyping from China: Custom samples ship within 2-4 weeks for most designs
- Low MOQ: 1 piece available for prototyping and testing
- Precision Manufacturing: High optical quality, tight dimensional control
- Full Confidentiality: Your designs and IP are protected by NDA

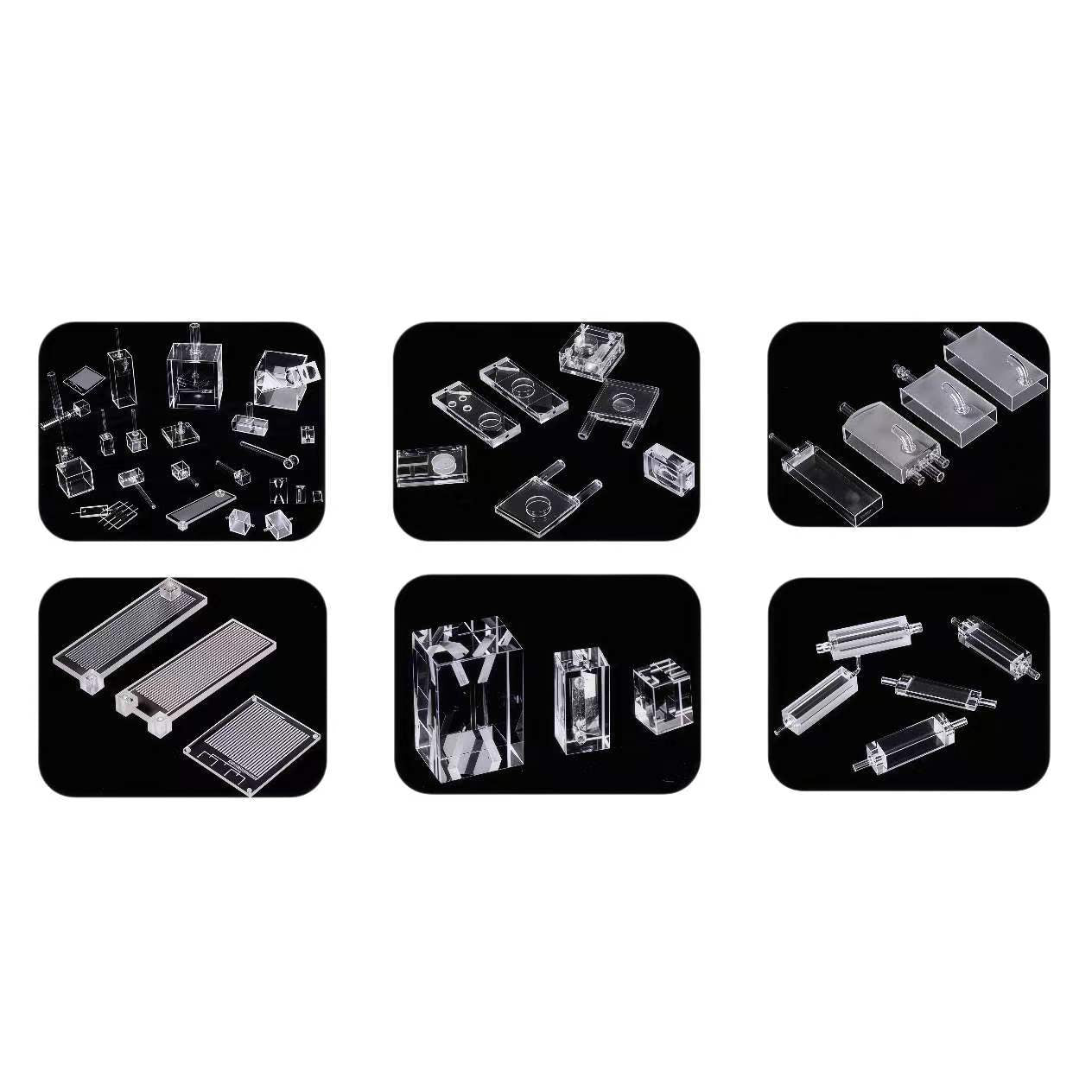

🔧 Customization Options
- Special Shapes and Geometries: Non-standard designs to fit your instrument
- Multi-Chamber Structures: Integrated multiple channels for parallel analysis
- Custom Optical Path Lengths: From sub-millimeter to 100mm+
- Integrated Ports or Connectors: Threaded ports, Luer fittings, or custom interfaces
- Material Selection: Quartz (fused silica), optical glass, UV-transparent plastics
- Surface Treatments: Hydrophilic/hydrophobic coatings, anti-reflection coatings
📋 Technical Specifications
| Parameter | Capability |
|---|---|
| Materials | Fused silica (quartz), optical glass (BK7, B270), UV-grade plastics (PMMA, PS, PC) |
| Path Length | 0.1 mm to 100 mm (custom) |
| Internal Volume | From < 5 µL to several mL |
| Optical Surface Quality | S/D 40/20 or better |
| Transmission Range | 190 nm – 2500 nm (depending on material) |
| Dimensional Tolerance | ±0.05 mm or better |
| Port Options | 1/4-28 UNF, Luer, barbed, or custom |
| Temperature Range | -20°C to 120°C (depending on materials) |
🔬 Typical Applications
- Specialized analytical instruments
- Diagnostic equipment (RUO)
- Research laboratories
- Industrial testing systems
- Process analytical technology (PAT)
- Flow injection analysis
- Biopharmaceutical process monitoring
⚙️ OEM/ODM Support
- Confidential Custom Projects: Your designs protected by NDA
- Private Labeling: Your logo and branding on components and packaging
- Prototype to Volume Production: Flexible quantities to meet your needs
- Global Export: Korea-based supplier with reliable worldwide shipping
❓ Frequently Asked Questions
Q: What is the minimum order quantity (MOQ) for custom cuvettes?
A: For prototypes, we can accommodate single pieces. Production MOQs depend on complexity and size. Please contact us with your requirements.
Q: What materials are available for custom cuvettes?
A: We offer fused silica (quartz), optical glass (BK7, B270), and UV-grade optical plastics (PMMA, PS, PC). Custom materials can be sourced upon request.
Q: Can you manufacture cuvettes with integrated ports or connectors?
A: Yes, we specialize in custom designs with integrated ports including 1/4-28 UNF, Luer, barbed, and custom interfaces for flow-through applications.
Q: What is the typical lead time for custom cuvettes?
A: Custom prototypes typically take 2-4 weeks, with production runs varying based on volume and complexity. Contact us for a specific timeline.
Q: How do I start a custom cuvette project?
A: Simply send us your drawing (PDF, STEP, or DXF) or specifications including dimensions, path length, material, and optical requirements. We'll provide a quotation within 3-5 business days.
📩 Get a Quote
For custom design and manufacturing, please contact us with your specifications.
📧 Email: info@meticulab.net
📞 Phone / WhatsApp / KakaoTalk: +82-10-3988-4813
Korea-Based Global Supplier | OEM & NDA Supported
