🔧 Custom Manufacturing – Requires Your Drawing or Sample
All products in this category are custom manufactured strictly based on customer drawings, samples, or technical specifications. We do not stock standard off-the-shelf items. Please contact us with your requirements for a quotation.

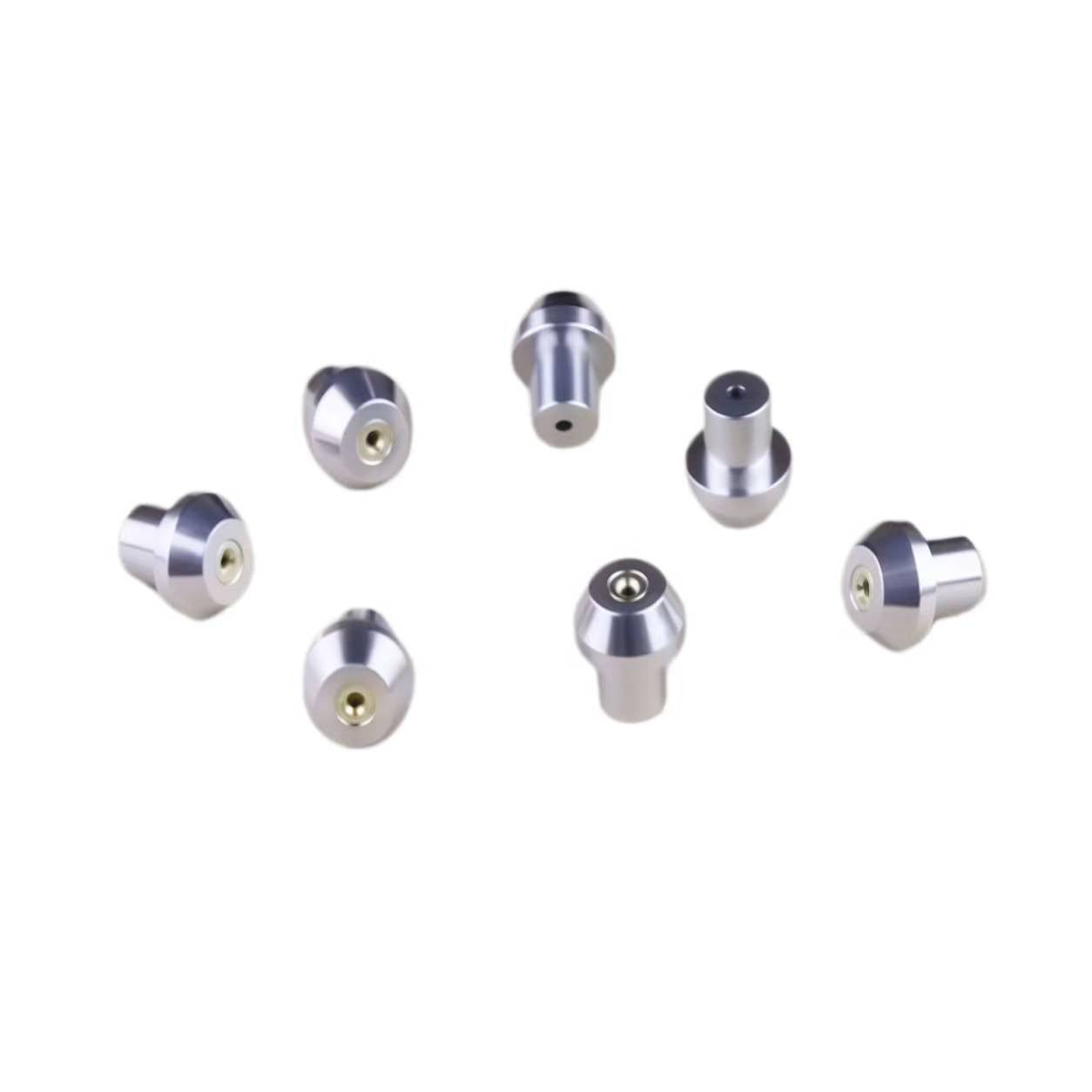

Custom Ruby/Sapphire Nozzles & Thread Guides
High-precision nozzles and thread guides manufactured from synthetic ruby and sapphire (α-Al₂O₃ ≥99.99%). These components leverage the exceptional hardness and wear resistance of jewel materials to deliver long service life in demanding industrial environments.
✅ Why Partner with Meticulab for Custom Jewel Components?
- Fast Prototyping from China: Custom samples ship within 2-4 weeks for most designs
- Low MOQ: 5-10 pieces available for testing (ideal for R&D and prototyping)
- Precision Engineering: Orifice tolerances down to ±0.001 mm, surface finish Rz 0.1 μm
- Full Confidentiality: Your designs and IP are protected by NDA
🔧 Typical Applications
- Textile Machinery: Thread guides, tensioners, yarn contact surfaces
- Inkjet Printers: Precision ink nozzles, printhead components
- High-Pressure Cutting: Waterjet cutting nozzles, abrasive mixing tubes
- Industrial Cleaning: High-pressure spray nozzles
- Medical Devices: Non-implantable fluid delivery tips
- Laboratory Instruments: Precision dispensing tips
📐 Specifications – Nozzles
| Parameter | Range / Value |
|---|---|
| Outer Diameter (D) | Custom (typical 1.0 – 10.0 mm) |
| Inner Orifice Diameter | As small as 0.04 mm (typical 0.1 – 2.0 mm) |
| Length (L) | Custom (typical 2.0 – 20.0 mm) |
| Orifice Tolerance | ±0.001 – 0.005 mm |
| Surface Roughness (Rz) | 0.1 – 0.2 μm (internal and external) |
| Material | Synthetic ruby/sapphire (α-Al₂O₃ ≥99.99%) |
| Configurations | Straight, tapered, single-hole, multi-hole |
📐 Specifications – Thread Guides
| Parameter | Range / Value |
|---|---|
| Outer Diameter (D) | Custom (typical 2.0 – 15.0 mm) |
| Length (L) | Custom (typical 5.0 – 30.0 mm) |
| Groove / Eyelet Geometry | V-groove, U-groove, round eyelet, custom profiles |
| Surface Roughness (Rz) | 0.1 – 0.2 μm (contact surfaces) |
| Material | Synthetic ruby/sapphire (α-Al₂O₃ ≥99.99%) |
All dimensions and geometries can be customized per customer requirements.
⚙️ Key Features
- Extreme Hardness: Mohs 9, resistant to abrasion and wear
- Low Friction: Dry friction coefficient with steel: 0.14
- Corrosion Resistance: Unaffected by most chemicals, acids, and solvents
- High Temperature Stability: Maintains properties up to 1000°C
- Precision Orifices: Tight tolerances for consistent flow
- Long Service Life: Reduces downtime and replacement costs
📦 Custom Manufacturing – Requires Your Drawing or Sample
All nozzles and thread guides are manufactured according to customer drawings, samples, or specifications. We do not stock standard off-the-shelf items. Please contact us with your requirements for a quotation.
We support:
- Custom diameters, lengths, and orifice sizes
- Special tip geometries (tapered, chamfered, radiused)
- Multi-hole configurations
- Prototype to volume production
- Integration with metal or ceramic housings
❓ Frequently Asked Questions
Q: What is the minimum order quantity (MOQ) for custom nozzles and thread guides?
A: We offer low MOQs – 50-100 pieces are available for prototyping and testing. Production MOQs depend on complexity and size, but we are flexible to accommodate R&D and small-batch needs.
Q: How do I start a custom nozzle project?
A: Simply send us your drawing (PDF, STEP, or DXF) or a sample part. We'll provide a quotation within 3-5 business days.
Q: What is the typical lead time?
A: Prototypes typically ship within 2-4 weeks. Production runs take 4-8 weeks depending on volume and complexity.
Q: Do you offer design assistance for custom orifice geometries?
A: Yes, our engineers can help optimize your design for manufacturability (DFM) to meet your exact flow and wear requirements.
Q: What is the smallest orifice diameter you can manufacture?
A: We can produce orifices as small as 0.04 mm with tolerances down to ±0.001 mm.
📜 Important Notice
These products are precision mechanical components for industrial and instrumentation applications. They are not medical devices and not intended for human implantation or clinical use.
📩 Get a Quote
Contact us with your specifications or drawings for a confidential discussion.
