PMT-S102 Side-On Photomultiplier Tube – 1 1/8", 9-Stage, 165–650 nm
PMT-S102 Side-On Photomultiplier Tube – 1 1/8", 9-Stage, 165–650 nm
🔬 For Research Use Only
This product is designed for laboratory research use only. Not for clinical or diagnostic applications.

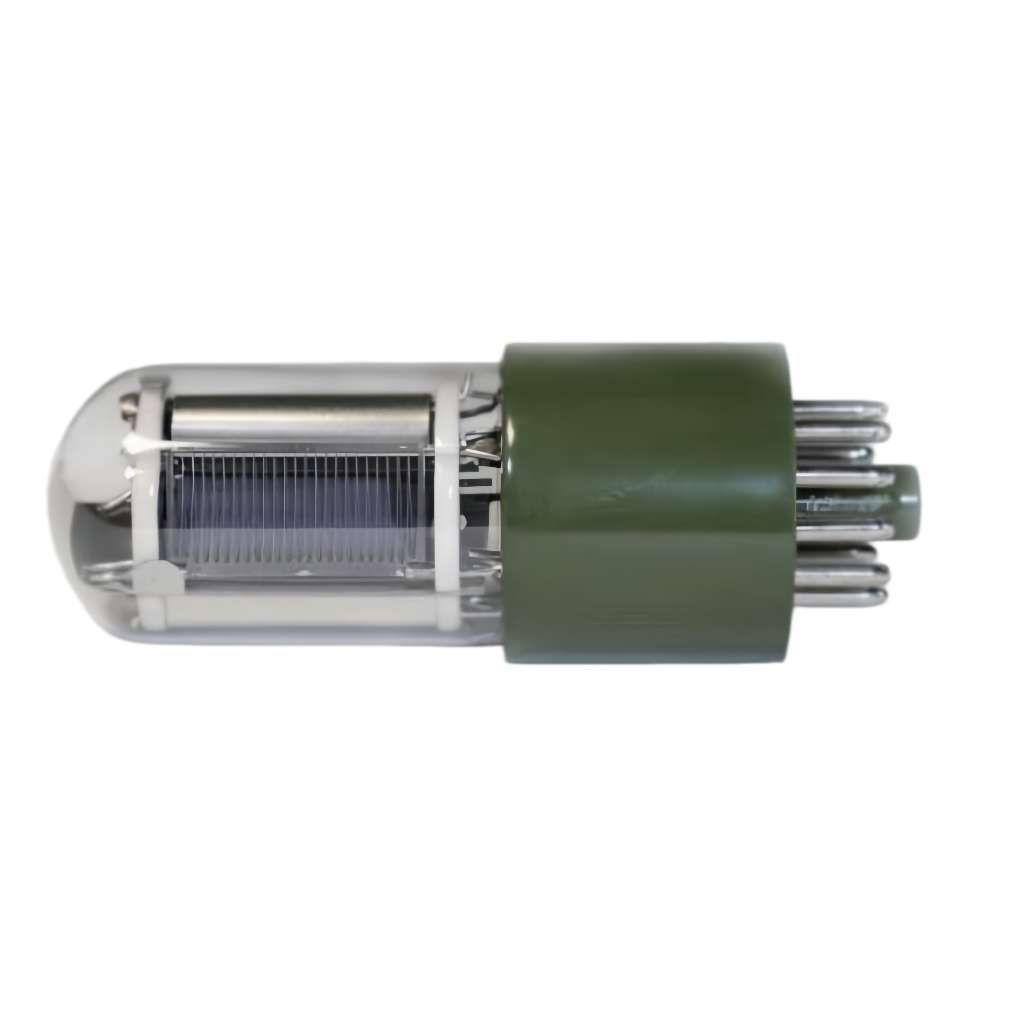

PMT-S102 Side-On Photomultiplier Tube
The PMT-S102 is a side-on photomultiplier tube featuring a 9-stage circular-cage dynode structure. Equipped with a quartz glass window and bialkali photocathode, it offers excellent sensitivity across the UV to visible light range.
✅ Why Choose Meticulab for Your PMT Needs?
- Fast Dispatch from Asia: In-stock semi-finished PMTs ship within 1–2 weeks via DHL/FedEx/UPS.
- Low MOQ: 1 unit minimum (ideal for R&D and prototyping)
- Technical Support: Engineers available to assist with selection and application questions.
- Competitive Pricing: Sourced directly from Asian manufacturing partners
🔧 Key Specifications
| Parameter | Value |
|---|---|
| Spectral Response | 165 – 650 nm |
| Window Material | Quartz Glass |
| Photocathode Material | Bialkali |
| Cathode Area | 8 × 24 mm² |
| Dynode Structure | Circular-Cage Focus (9-stage) |
| Anode Sensitivity | 1500 – 2000 A/lm |
| Gain | 8 × 10⁶ |
| Rise Time | 2.2 ns |
| Operating Temperature | -30°C to +50°C |
📋 Typical Applications
- Spectroscopy
- Fluorescence detection
- Environmental monitoring
- Biomedical analysis
❓ Frequently Asked Questions
Q: Can I order a single sample for testing?
A: Absolutely. We offer low MOQ — a single unit is available for evaluation.
Q: What is the typical shipping time?
A: In-stock semi-finished PMTs ship within 1–2 weeks from our logistics center in Asia via DHL/FedEx/UPS. Delivery to most countries takes 2–4 business days after dispatch.
Q: Do you provide technical support for PMT selection?
A: Yes, our engineers can help you select the right PMT based on your application requirements.
No minimum order quantity. Whether you need 1 unit for testing or 100 units for production, we can accommodate your needs.
